X935M

Tesla Part Number

1517047-00-A

Connector

YAZAKI 7288-4103-40

Color

GY

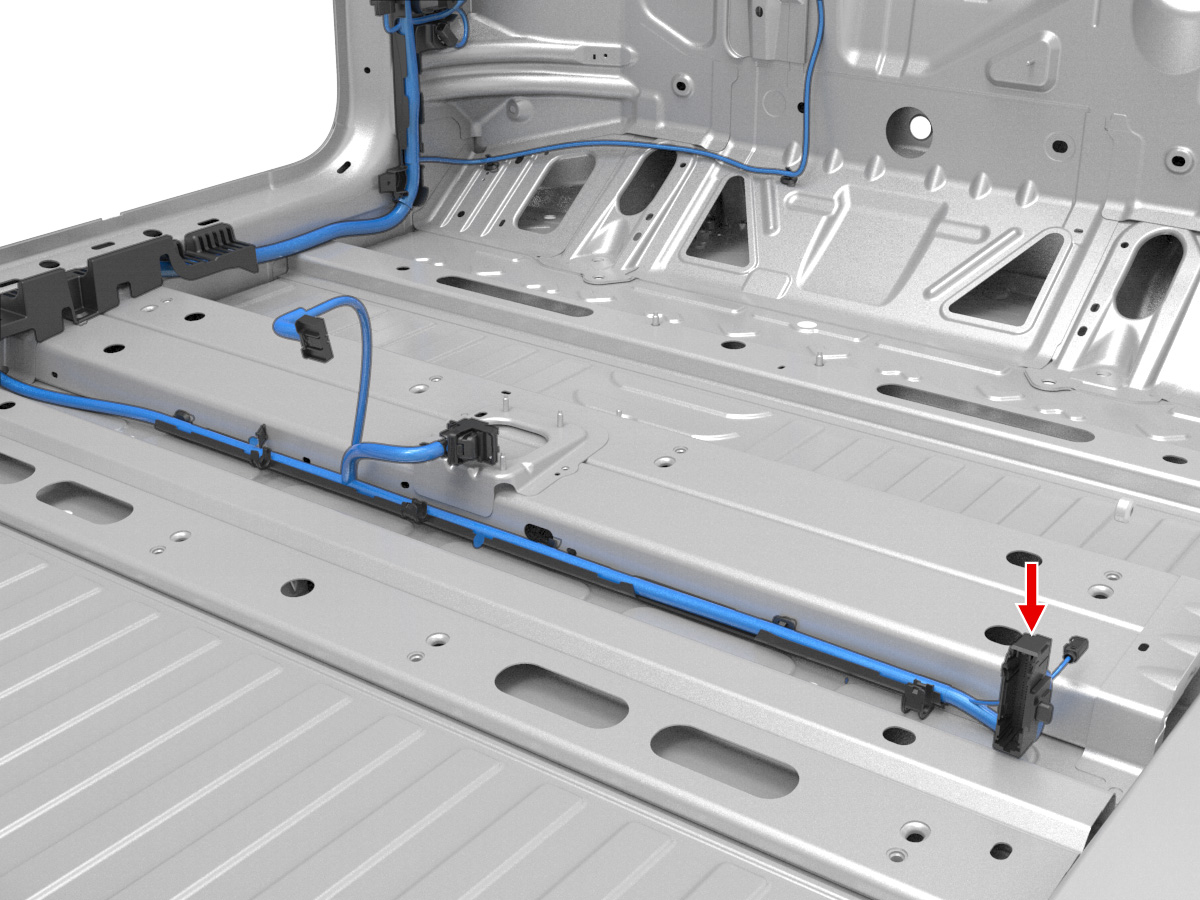

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	WH	2.00			X031	34
2	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00			X031	33
3	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X031	36
4	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50			X031	35
5	SUMITOMO	8230-4925	1.5x0.6M	GN	0.50			X981M	3
6	SUMITOMO	8230-4925	1.5x0.6M	GY	0.50			X981M	4
7	unused
8	SUMITOMO	8230-4925	1.5x0.6M	WH	0.50			X981M	5
9	SUMITOMO	8230-4925	1.5x0.6M	BN	0.50			X981M	6
10	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X924M	24
11	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X924M	25
12	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50
13	SUMITOMO	8230-4925	1.5x0.6M	BU	0.35
14	SUMITOMO	8230-4925	1.5x0.6M	GN	0.35			X201	1
15	SUMITOMO	8230-4925	1.5x0.6M	WH	0.35			X201	2
16	unused
17	unused
18	SUMITOMO	8230-4925	1.5x0.6M	BK	0.35			X201	19
19	SUMITOMO	8230-4925	1.5x0.6M	WH	0.35			X201	20
20	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	42
21	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X201	41
22	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X201	10
23	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X201	9
24	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X030A	7
25	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X039	2
26	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X201	38
27	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X201	37
28	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X096	7
29	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X096	8
30	SUMITOMO	8100-3623	0.64x0.64M	YE/LTBU	0.35			X031	43
31	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X031	42
32	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X201	56
33	unused
34	unused
35	unused
36	unused
37	unused
38	unused
39	SUMITOMO	8230-4925	1.5x0.6M	GN	0.35			X950M	15
40	SUMITOMO	8230-4925	1.5x0.6M	VT	0.35			X950M	16
41	unused
42	unused
43	unused
44	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X930F	9
45	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X930F	10
46	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X950M	1
47	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X950M	2
48	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X950M	3
49	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X950M	14
50	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X981M	7
51	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X981M	8
52	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X096	5
53	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X096	6
54	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X031	25
55	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X201	16
56	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X201	15
57	unused
58	unused
59	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X981M	9
60	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X981M	10
61	unused
62	SUMITOMO	8230-4923	1.5x0.6M	RD	2.00			X039	15
63	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00			X921F	9
