X950M

Tesla Part Number

1754743-00-A

Connector

MOLEX 33482-7015

Color

GY

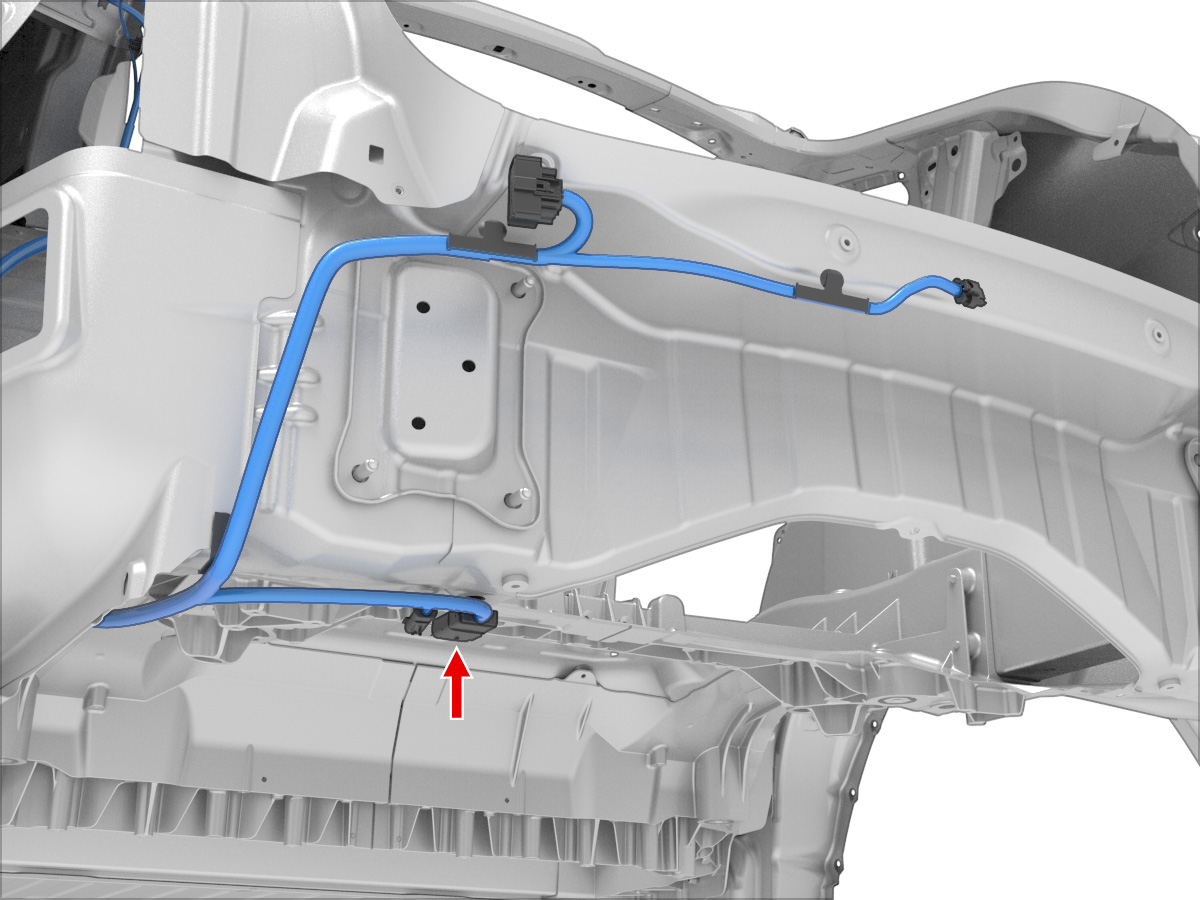

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X167	6
2	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X167	5
3	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X167	4
4	MOLEX	33000-0004	1.5x0.8M	YE/LTBU	0.35	TESLA	MAT-120-240	X031	13
5	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X031	14
6	unused
7	unused
8	unused
9	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X030A	27
10	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X031	21
11	unused
12	MOLEX	33000-0001	1.5x0.8M	BK	1.50	TESLA	MAT-120-240	G041	7
13	unused
14	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X167	1
15	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X167	2
16	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X167	3
