X981M

Tesla Part Number

1849225-02-A

Connector

KSE K30M31003

Color

BU

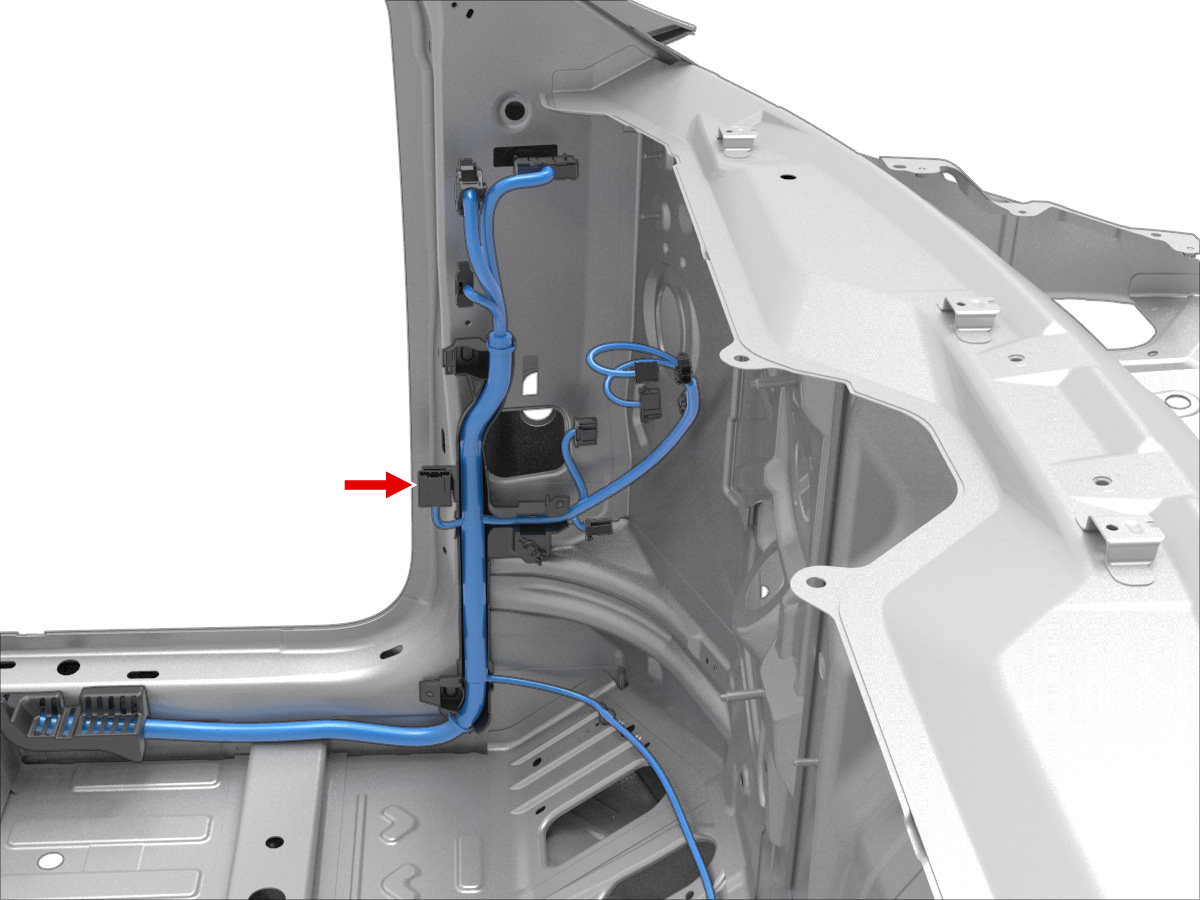

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X935M	5
4	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X935M	6
5	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X935M	8
6	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X935M	9
7	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X935M	50
8	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X935M	51
9	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X935M	59
10	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X935M	60
11	unused
12	unused
13	unused
14	unused
15	unused
16	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X030B	6
17	unused
18	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X030A	6
19	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X030A	26
20	SUMITOMO	8230-4925	1.5x0.6M	BK	0.35			G031	14
