X001

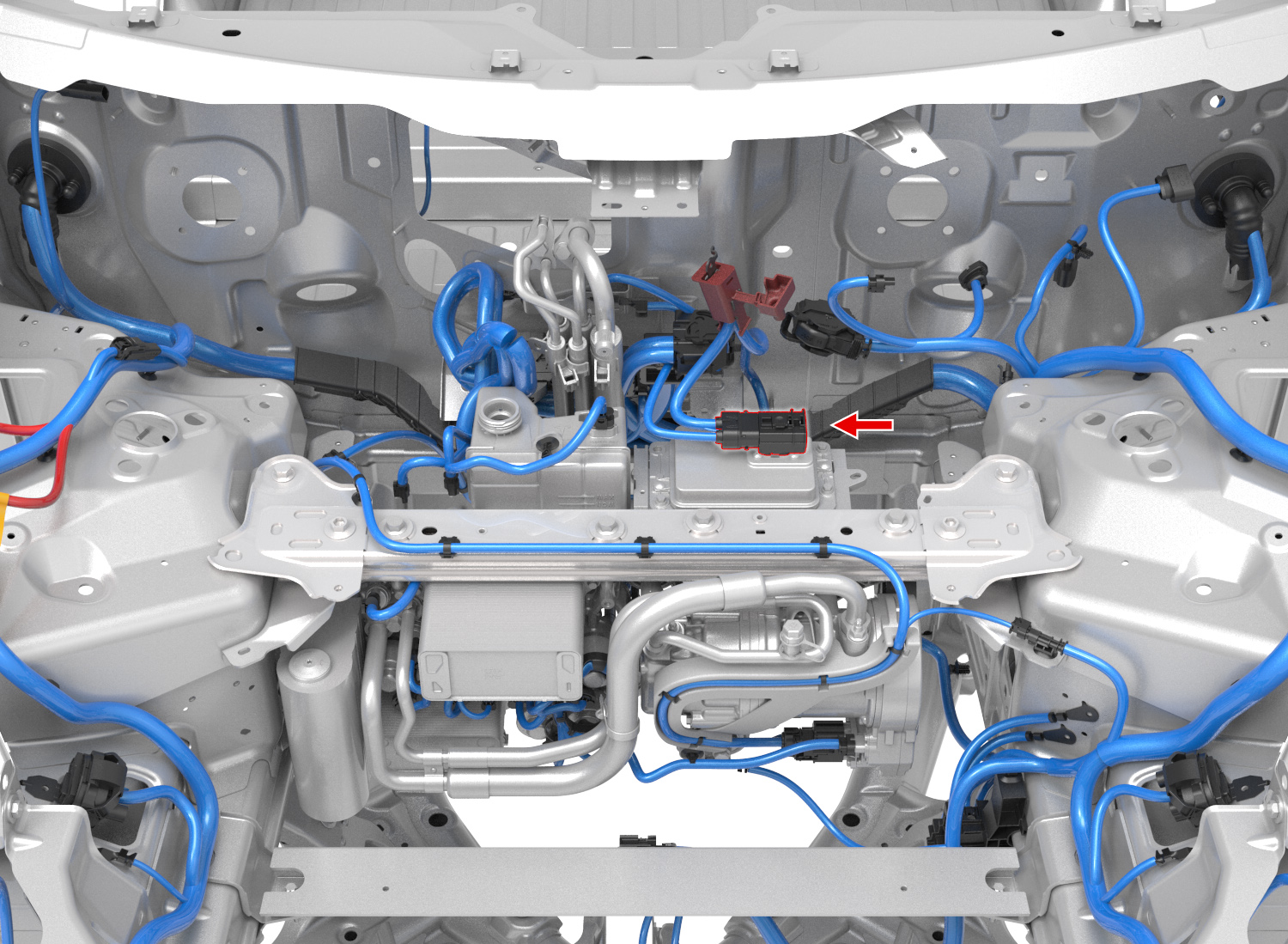

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | JONHON | 85563007-01 | PWR,M | RD | 25 | PIA | PIA-SEAL | X008 | 1 |
| 2 | JONHON | 85563007-01 | PWR,M | BK | 25 | PIA | PIA-SEAL | G001 | 1 |
| 5 | AMP | 1534594-3 | 1.2x0.63F | BU | 0.35 | PIA | PIA-SEAL | X010 | 66 |
| 6 | AMP | 1534594-3 | 1.2x0.63F | YE | 0.35 | PIA | PIA-SEAL | X010 | 67 |
| 7 | AMP | 1534594-3 | 1.2x0.63F | DKGN/WH | 0.35 | PIA | PIA-SEAL | X010 | 60 |
| 3 | unused | ||||||||
| 4 | unused | ||||||||
