X008

Tesla Part Number
1690124-00-A
Connector
RSD RSD2D3264
Color
SI

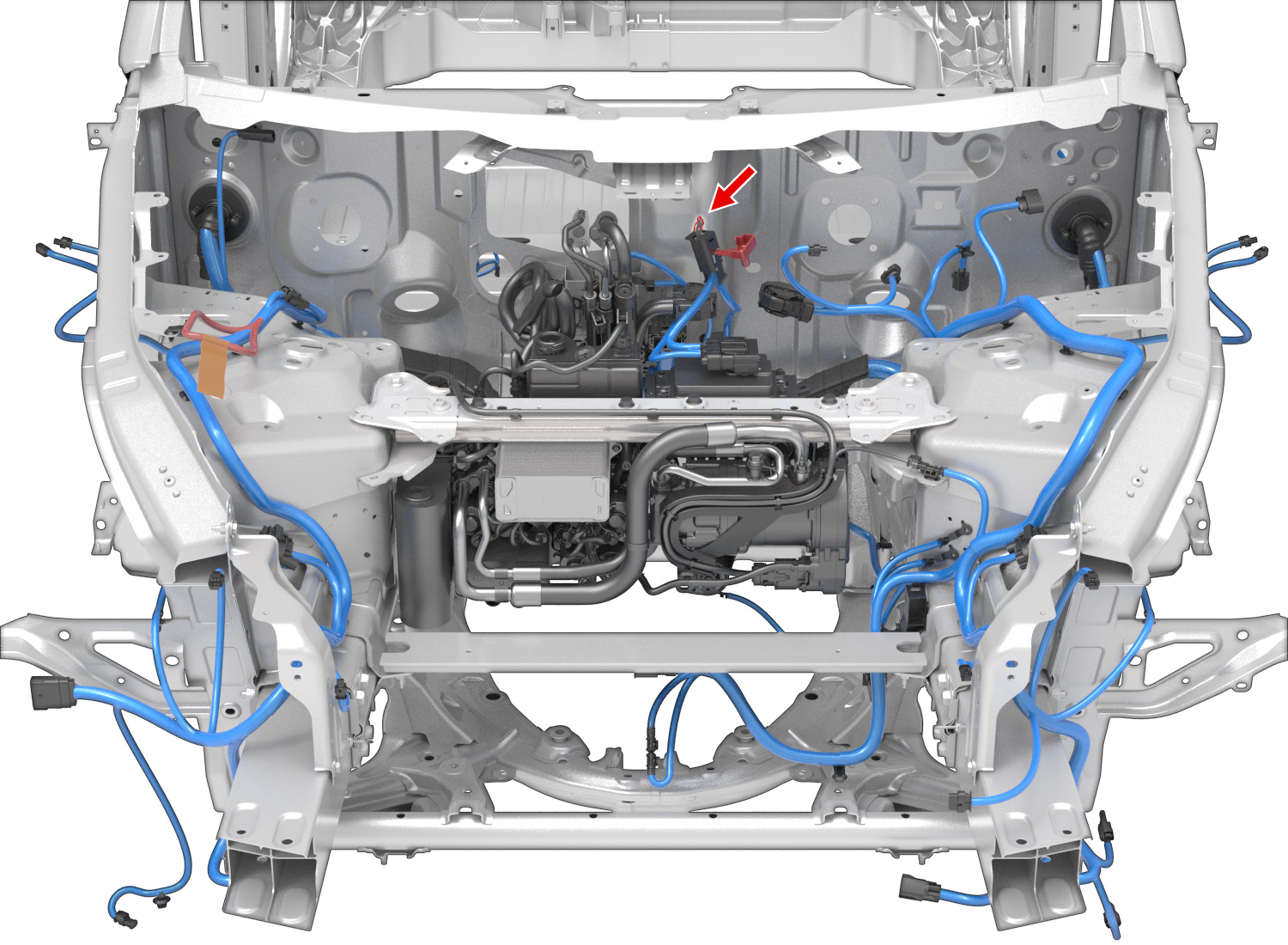

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1RD25X0011
