X030B

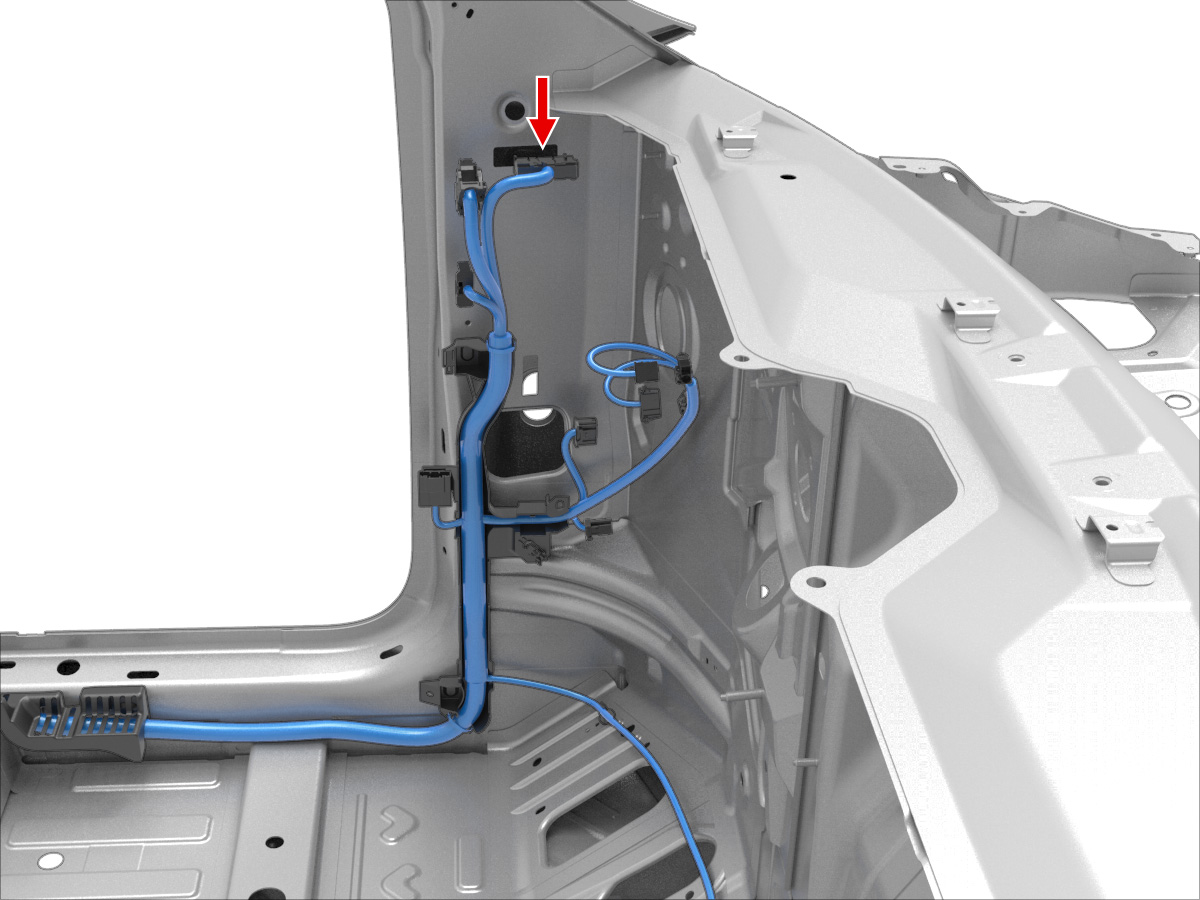

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X924M | 20 | ||
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | SUMITOMO | 8240-0215 | 1.5x0.64F | GY | 0.35 | X981M | 16 | ||
| 7 | SUMITOMO | 8240-0215 | 1.5x0.64F | GN | 0.35 | X943F | 17 | ||
| 8 | unused | ||||||||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | SUMITOMO | 8240-4932 | 4.8x0.8F | RD | 3.00 | X921F | 8 | ||
