X033A

Tesla Part Number

1506908-02-A

Connector

SUMITOMO 6098-8953

Color

WH

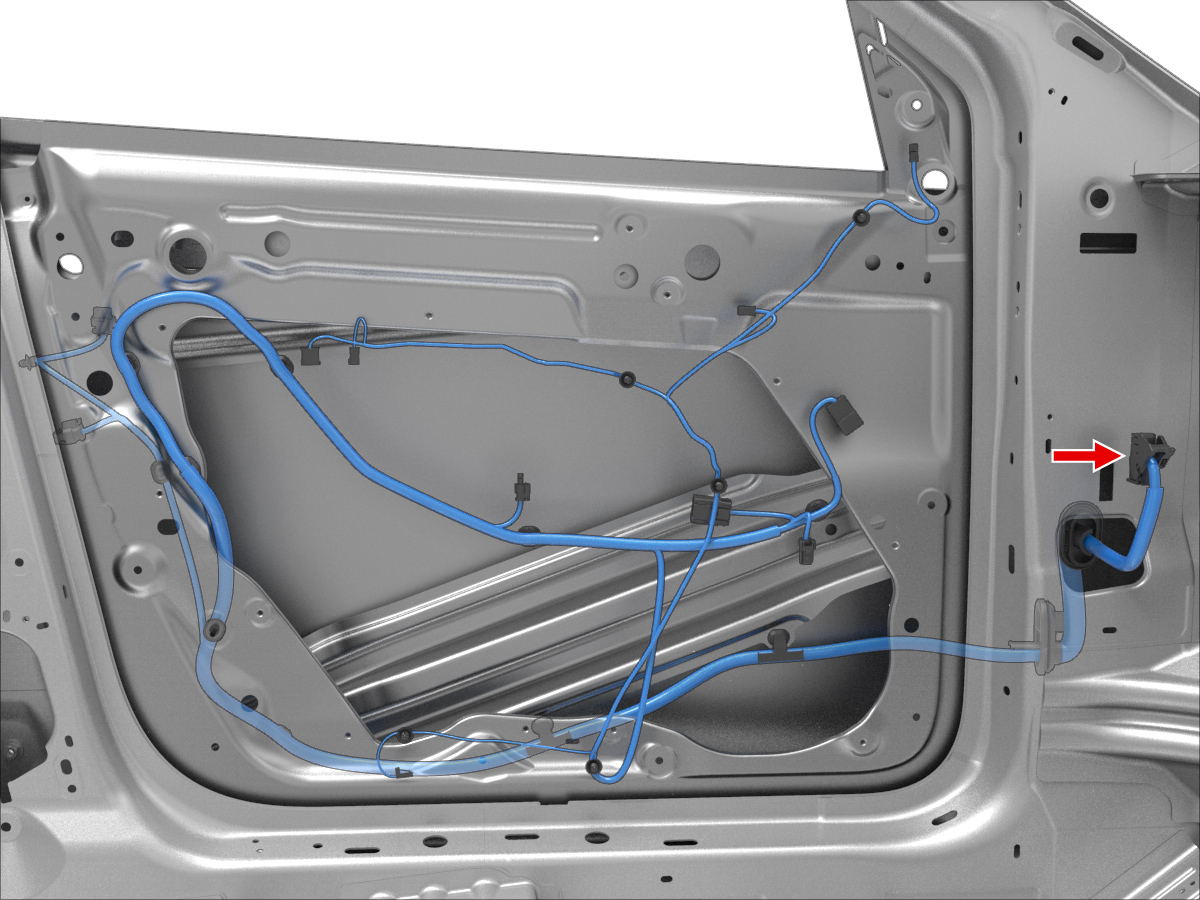

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X373	4
2	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X376	12
3	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X376A	5
4	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X366	3
5	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X367	4
6	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X367	2
7	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X376	3
8	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X376A	9
9	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X376	8
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X376	2
11	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X365	5
12	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X366	2
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X371	1
14	unused
15	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X204	2
16	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X204	1
17	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X380	1
18	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X376	4
19	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X365	4
20	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X365	3
21	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X365	2
22	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X369	2
23	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X376	10
24	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X373	6
25	unused
26	unused
27	unused
28	unused
29	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X565	2
30	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X565	1
31	SUMITOMO	8240-0213	1.5x0.64F	BU	1.00			X567	2
32	SUMITOMO	8240-0213	1.5x0.64F	WH	1.00			X567	1
33	SUMITOMO	8240-0213	1.5x0.64F	BK	1.00
34	SUMITOMO	8240-0214	1.5x0.64F	TN	1.50			X373	3
35	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X373	1
