X035_1

Tesla Part Number

1506906-01-A

Connector

SUMITOMO 6098-8975

Color

GY

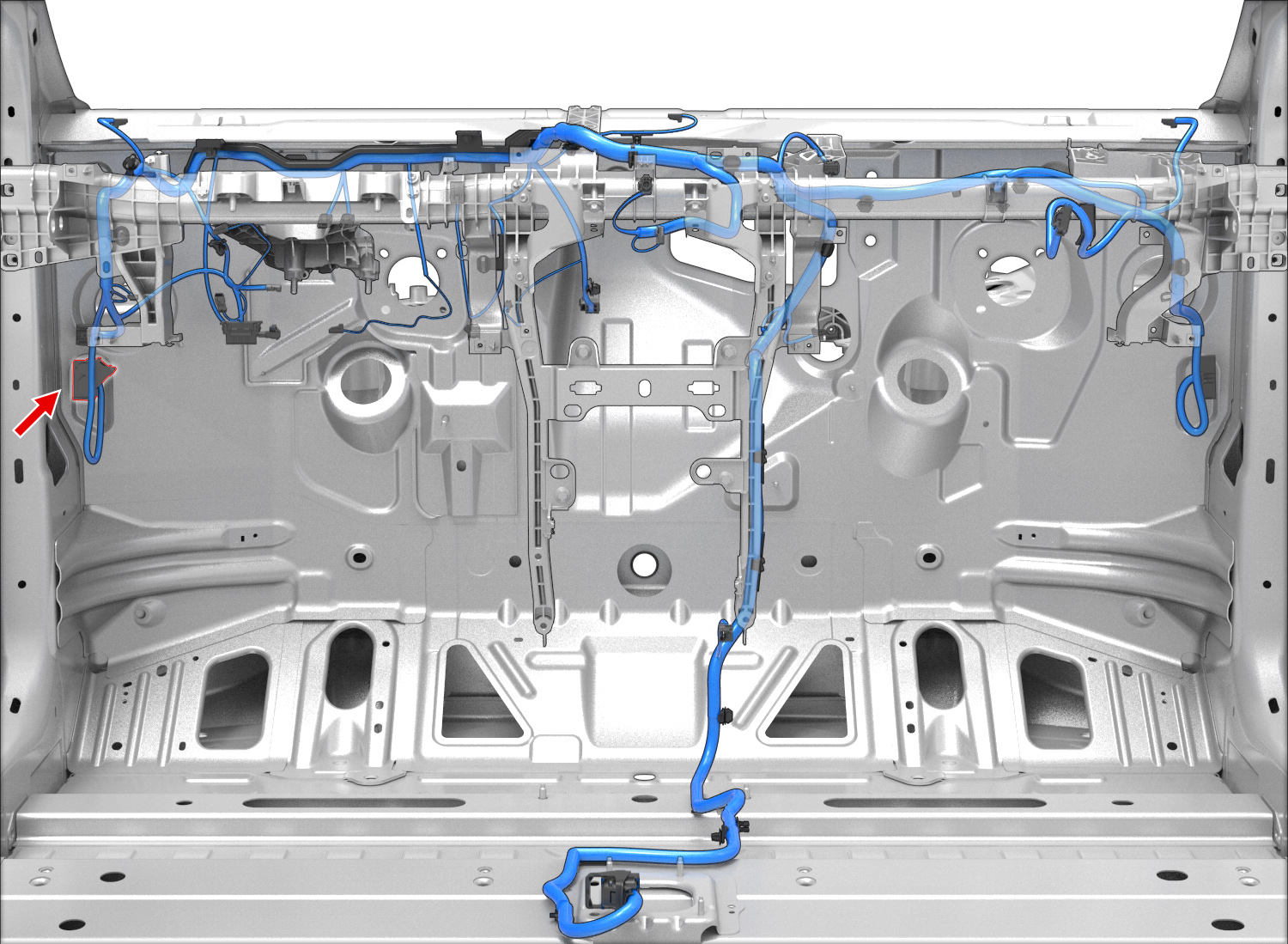

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X695	3
4	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X695	1
5	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X180_1	7
6	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X200_1	52
7	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X182_1	12
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X200_1	46
10	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X200_1	43
11	unused
12	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X180_1	3
13	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X180_1	2
14	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X181_1	14
15	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X182_1	2
16	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X200_1	4
17	SUMITOMO	8240-0215	1.5x0.64F	VT	0.35			X200_1	31
18	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X200_1	32
19	unused
20	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00
21	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X200_1	51
22	unused
23	unused
24	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X182_1	8
25	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X200_1	45
26	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X200_1	44
27	unused
28	unused
29	unused
30	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X181_1	6
31	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X182_1	1
32	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X200_1	3
33	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X181_1	16
34	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X181_1	3
35	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X182_1	6
36	SUMITOMO	8240-0215	1.5x0.64F	TN	0.50			X182_1	5
37	unused
38	unused
39	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X182_1	7
40	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X182_1	11
41	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X180_1	14
42	unused
43	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X280_1	1
44	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X180_1	1
45	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X181_1	11
