X036

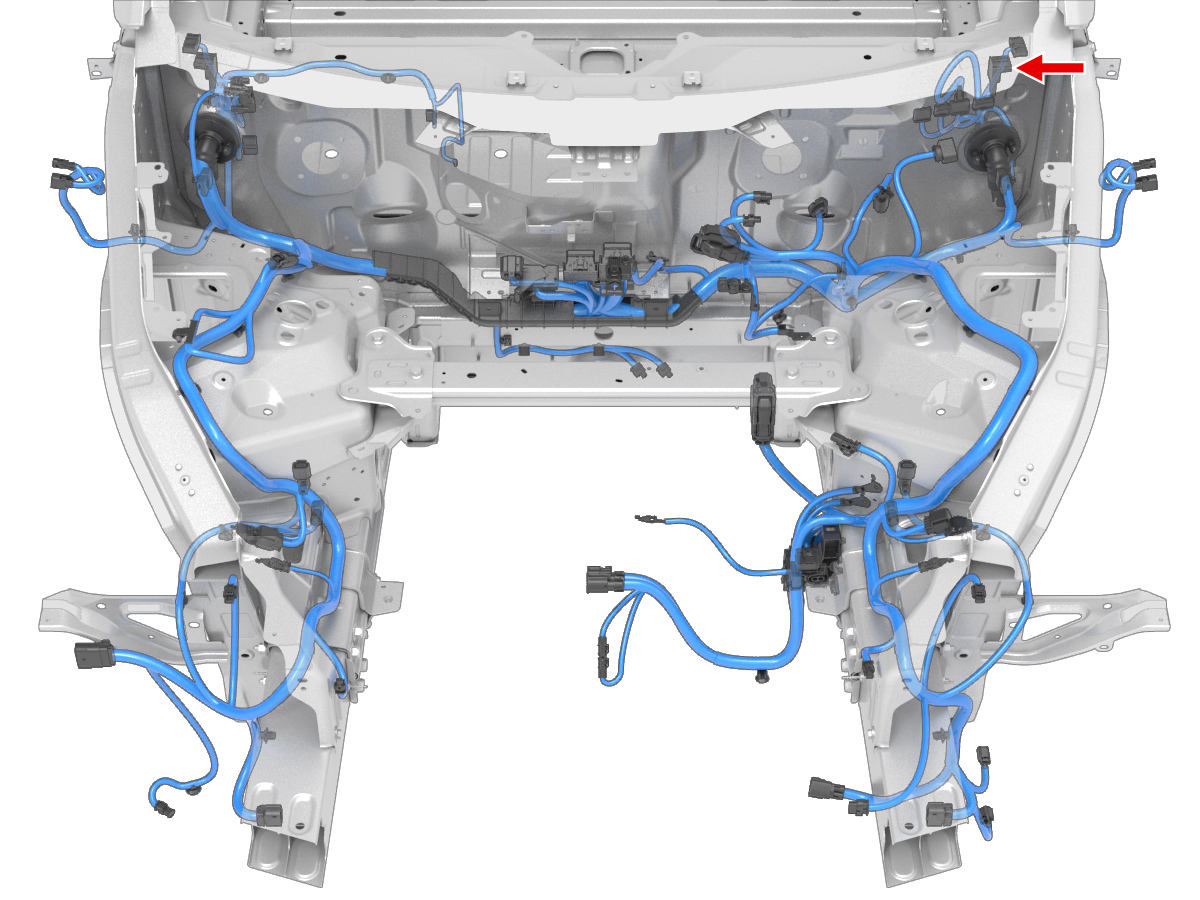

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | KSE | K80F90501 | 6.3x0.8F | RD | 16 | X014 | 1 | ||
| 2 | KSE | K80F90501 | 6.3x0.8F | BK | 8.00 | G023 | 1 |
