X055_1

Tesla Part Number

1043175-00-A

Connector

SUMITOMO 6098-4831

Color

WH

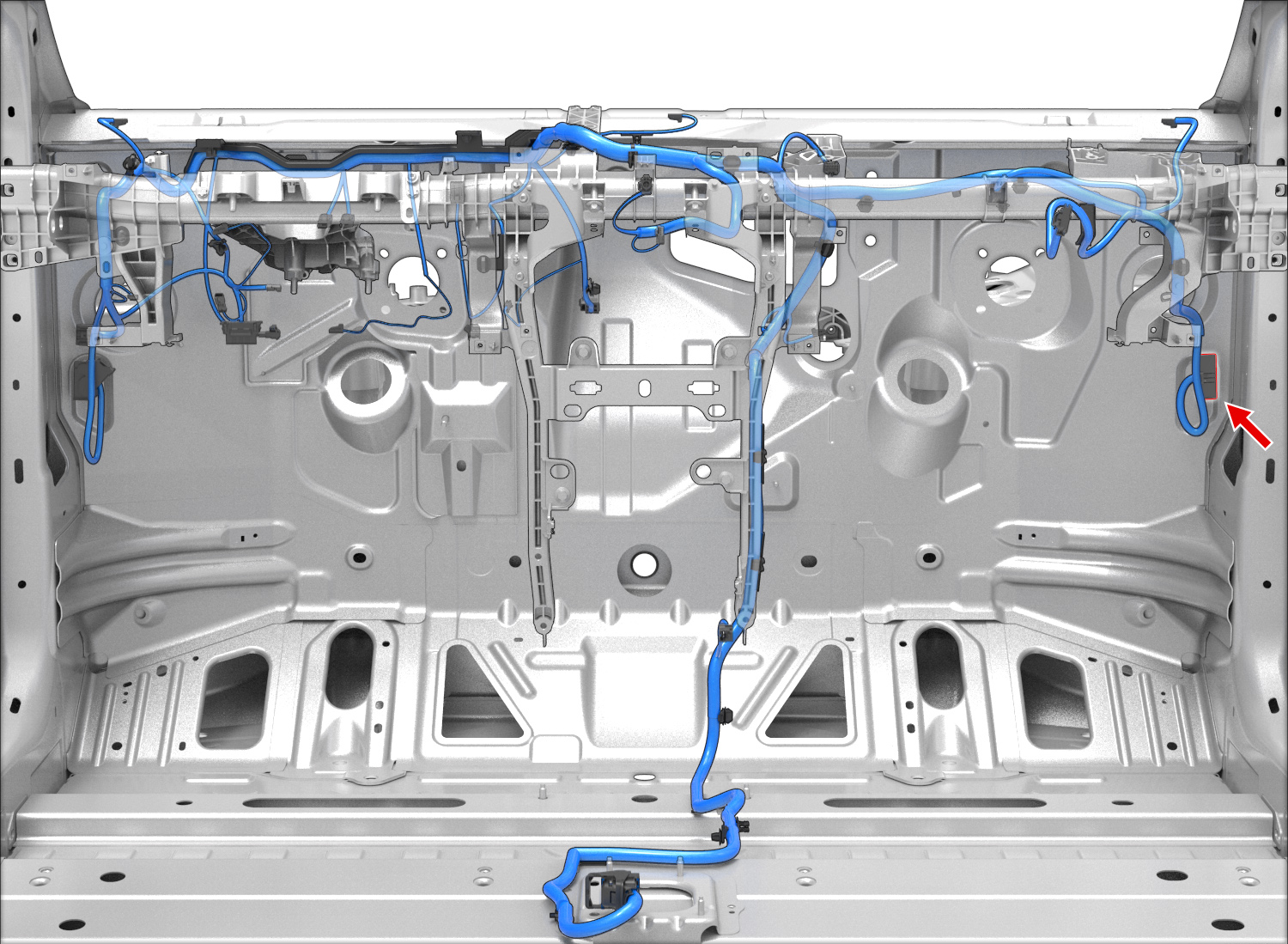

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X200_1	38
2	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X558_1	4
3	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X558_1	5
4	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X559_1	5
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X542_1	1
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X200_1	7
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X200_1	8
8	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X200_1	1
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X200_1	2
10	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X200_1	34
11	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X200_1	33
12	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X281_1	1
13	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X542_1	4
14	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X542_1	3
15	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X187_1	1
16	unused
17	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X186_1	1
18	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X200_1	39
19	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X559_1	4
20	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X558_1	6
21	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X559_1	6
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X542_1	2
23	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X186_1	2
24	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X547_1	2
25	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X550_1	2
26	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X559_1	3
27	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X559_1	7
28	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X558_1	3
29	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X558_1	7
30	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X547_1	1
31	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X550_1	1
32	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X200_1	40
33	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X200_1	27
34	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X200_1	35
35	SUMITOMO	8100-3625	0.64x0.64F	TN	0.50			X576_1	1
36	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50			X576_1	2
37	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X566_1	1
38	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X566_1	2
39	unused
40	unused
