X082

Tesla Part Number
1053199-00-A
Connector
KOSTAL 9444031
Color
BK

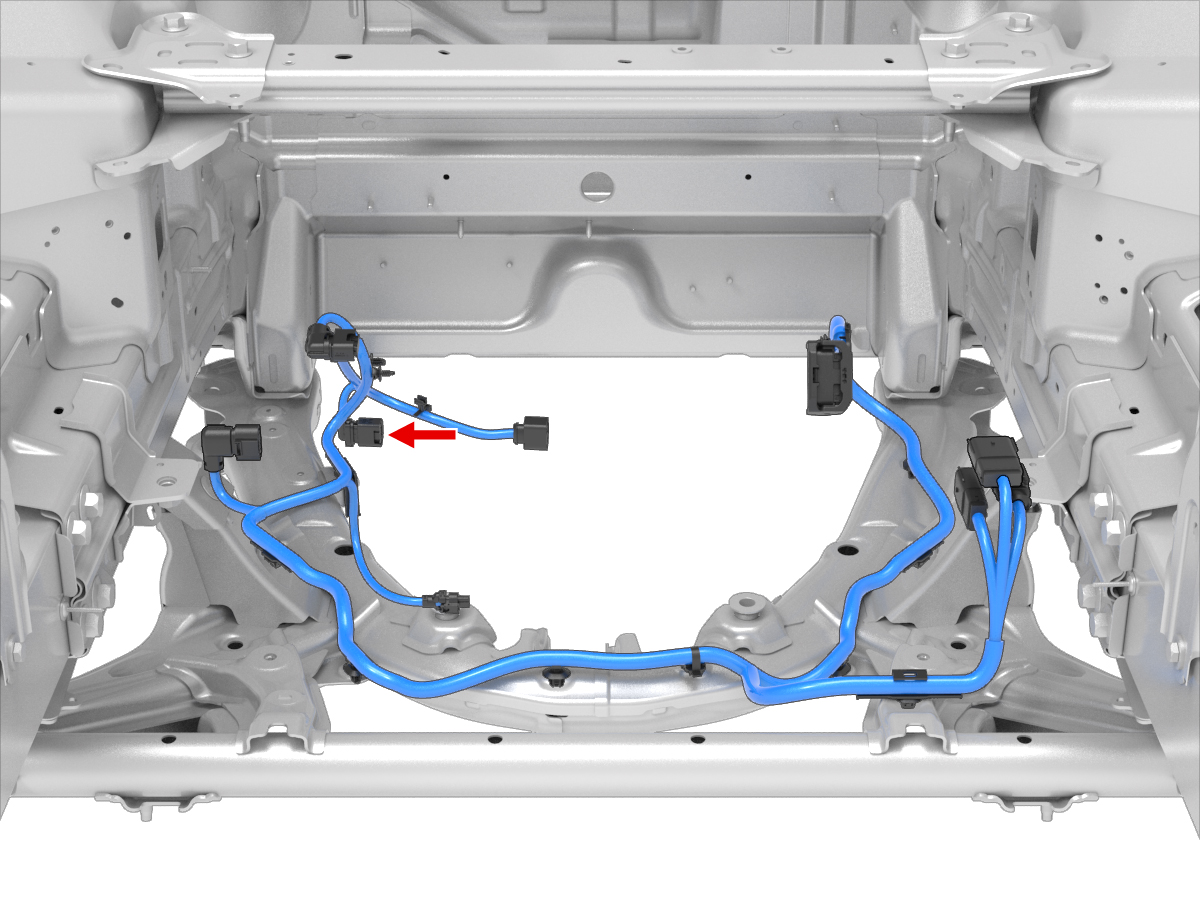

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1KOSTAL221244920502.8x0.8FSBU0.35KOSTAL10800444522X912M1
2KOSTAL221244920502.8x0.8FSGN0.35KOSTAL10800444522X912M2
3KOSTAL221244920502.8x0.8FSBN0.35KOSTAL10800444522X912M3
