X121A

Tesla Part Number

1815599-00-A

Connector

SUMITOMO 6099-0400

Color

NA

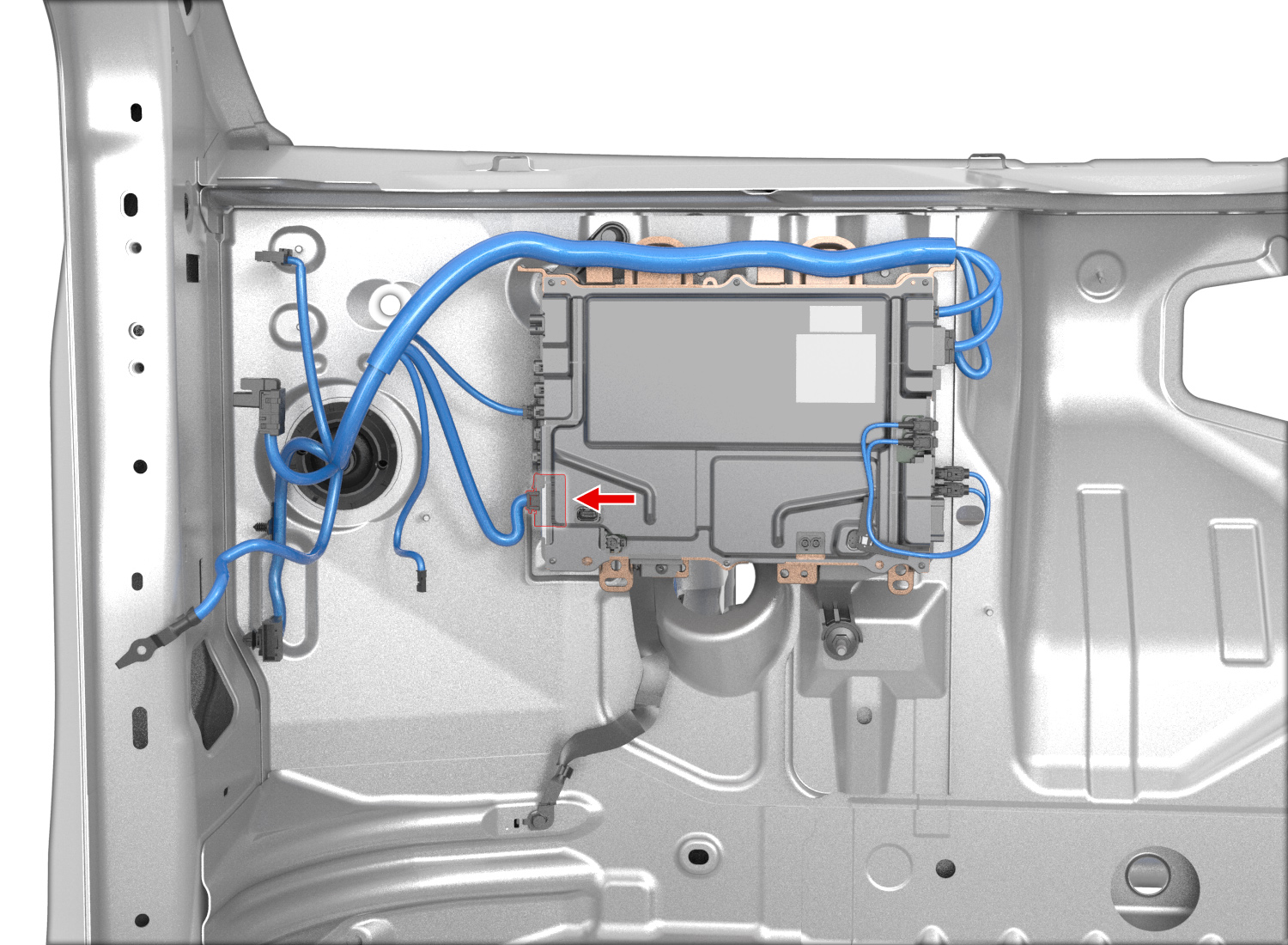

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-4932	4.8x0.8F	BU	4.00			X012	2
2	unused
3	unused
4	unused
5	unused
6	unused
7	unused
8	unused
9	unused
10	unused
11	unused
12	unused
13	unused
14	unused
15	SUMITOMO	8100-2730	1.0x0.64F	YE/LTBU	0.35			X010	12
16	SUMITOMO	8100-2730	1.0x0.64F	YE	0.35			X010	27
17	SUMITOMO	8100-2730	1.0x0.64F	BU	0.35
18	SUMITOMO	8100-2730	1.0x0.64F	RD	0.35
19	unused
20	unused
