X150A

Tesla Part Number
1037271-01-A
Connector
BOSCH 1928406436
Color
BK

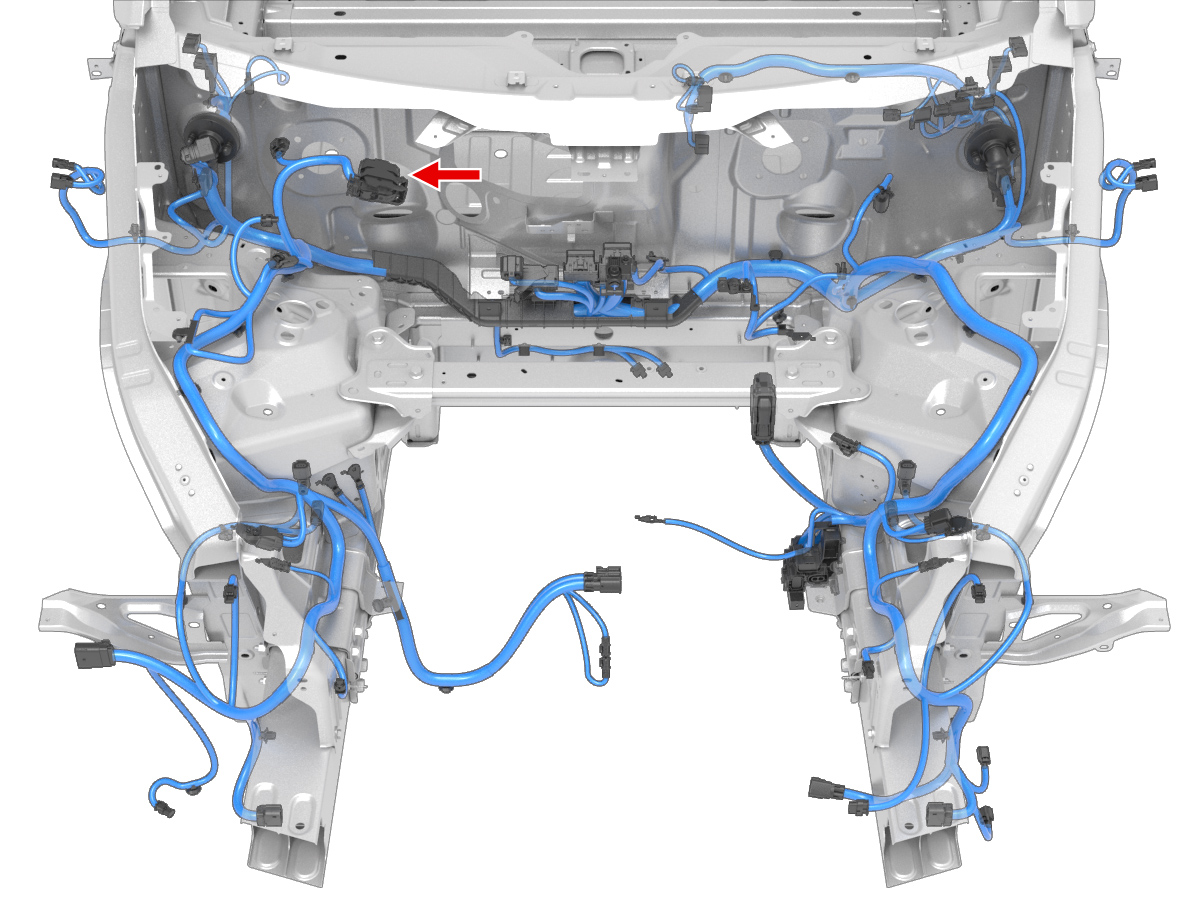

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1BOSCH19284988074.8x0.8FSRD4.00BOSCH1928301086X0125
2BOSCH19284987051.5x0.6FSRD0.50BOSCH1928301118X158A2
3unused
4unused
5unused
6unused
7unused
8BOSCH19284987051.5x0.6FSGY0.50BOSCH1928301118X158A4
9BOSCH19284988074.8x0.8FSBK4.00BOSCH1928301086G0126
10BOSCH19284987051.5x0.6FSYE0.35BOSCH1928301118X01055
11unused
12unused
13unused
14unused
15unused
16BOSCH19284987051.5x0.6FSGN0.35BOSCH1928301118
17unused
18BOSCH19284987051.5x0.6FSYE/LTBU0.35BOSCH1928301118X01054
19unused
20BOSCH19284987051.5x0.6FSYE0.35BOSCH1928301118X0106
21unused
22BOSCH19284987051.5x0.6FSWH0.50BOSCH1928301118X158A1
23BOSCH19284987051.5x0.6FSBU0.50BOSCH1928301118X158A3
24unused
25BOSCH19284987051.5x0.6FSDKGN/WH0.35BOSCH1928301118
