X163

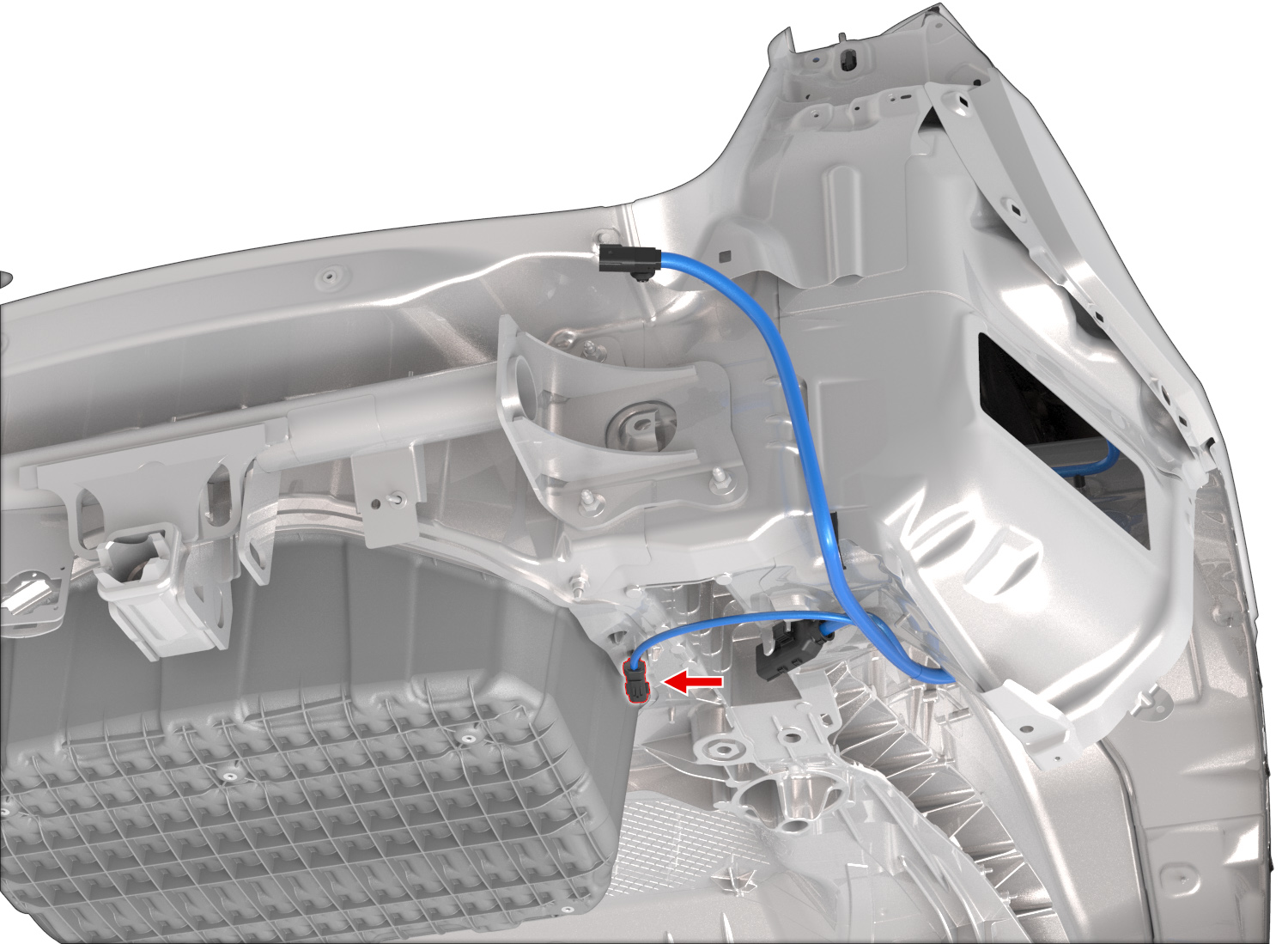

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FCI | 54001401 | 2.8x0.8M | GN | 1.50 | TESLA | MAT-170-270 | X051 | 4 |
| 2 | FCI | 54001401 | 2.8x0.8M | BK | 1.50 | TESLA | MAT-170-270 | X051 | 5 |
