X165

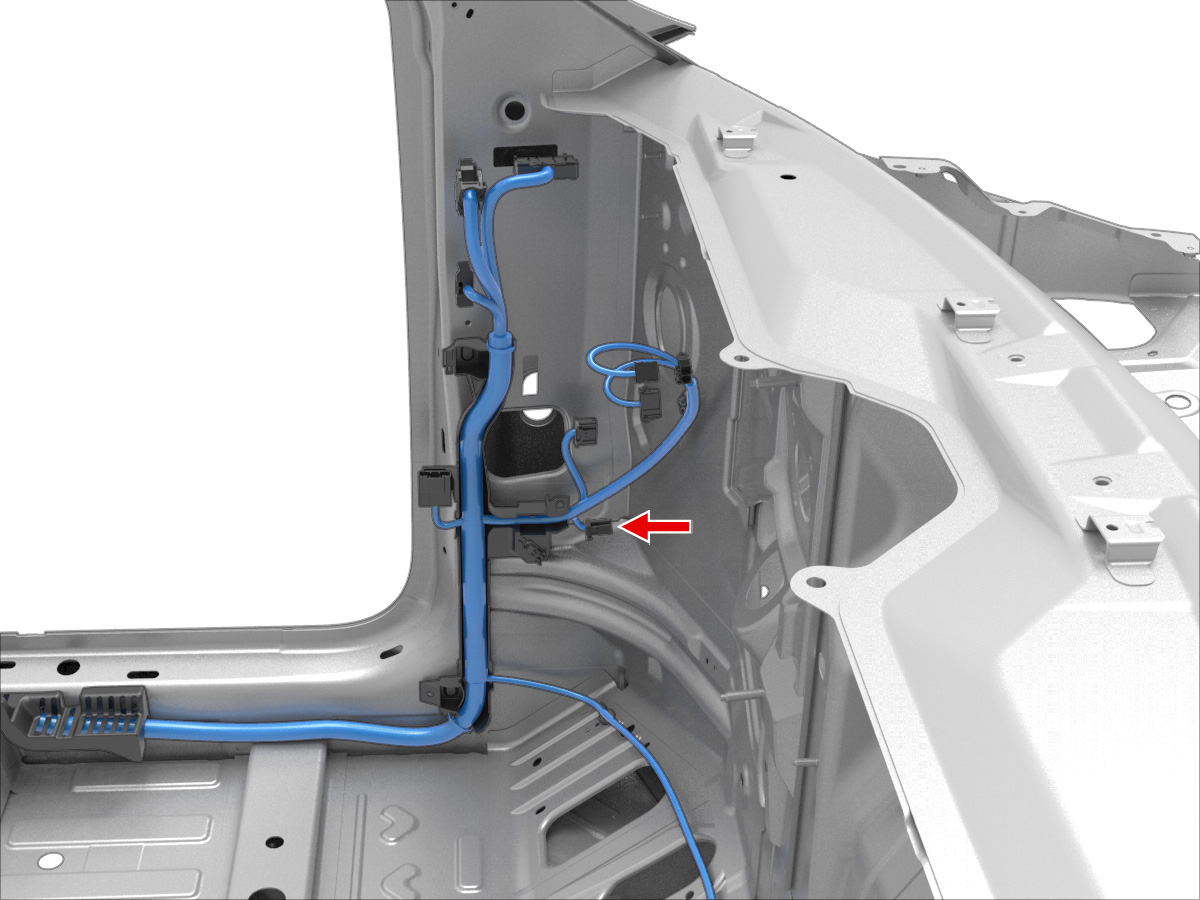

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4512 | 2.3x0.64M | BU | 2.00 | X921F | 9 | ||
| 2 | SUMITOMO | 8230-4512 | 2.3x0.64M | BK | 2.00 | G031 | 3 | ||
| 3 | SUMITOMO | 8230-4492 | 2.3x0.64M | WH | 0.50 | X030A | 7 | ||
| 4 | SUMITOMO | 8230-4512 | 2.3x0.64M | RD | 2.00 | X039 | 15 |
