X196B

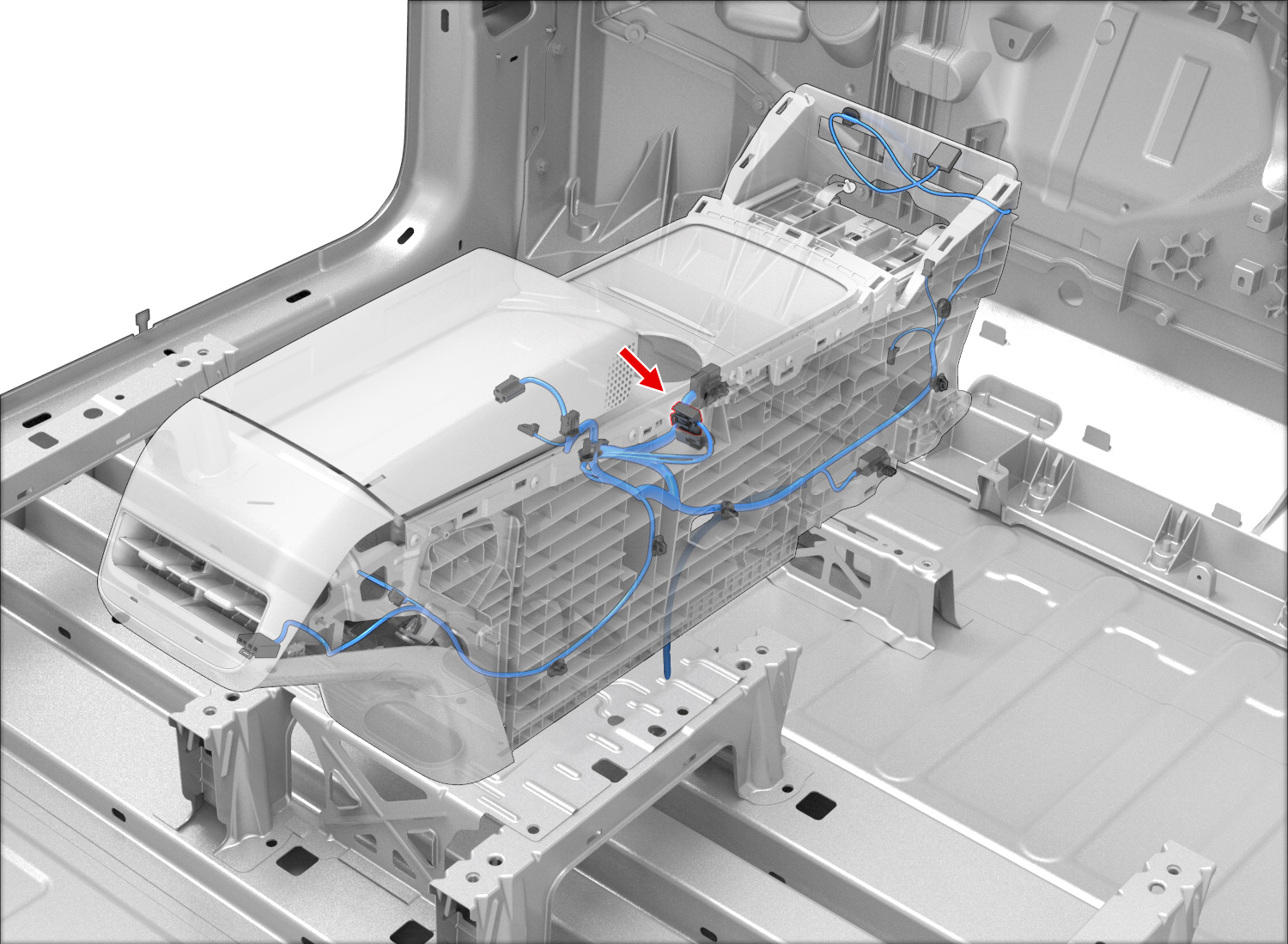

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | DELPHI | 12066214 | 2.8x0.8F | GY | 2.00 | X195B | B | ||
| B | DELPHI | 12066214 | 2.8x0.8F | BK | 2.00 | X694 | C | ||
| C | DELPHI | 12066214 | 2.8x0.8F | RD | 2.00 | X694 | D | ||
| D | DELPHI | 12066214 | 2.8x0.8F | BU | 2.00 | X195B | C |
