X200

Tesla Part Number

1475383-00-A

Connector

BOSCH 1928406052

Color

BK

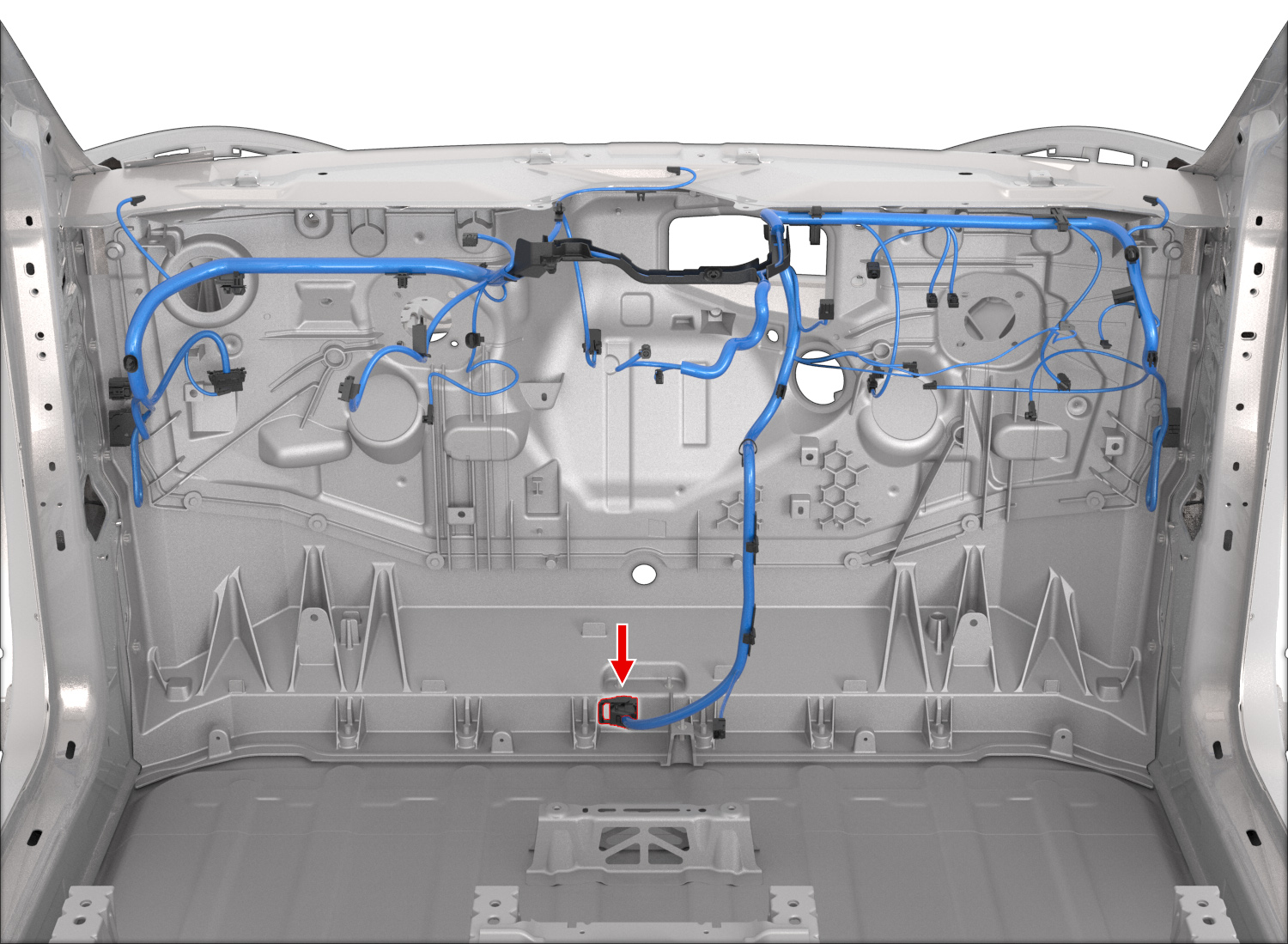

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X055	8
2	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X055	9
3	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X035	32
4	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X035	16
5	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X231	1
6	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X231	2
7	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X035	2
8	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X035	1
9	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X180	12
10	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X180	13
11	unused
12	unused
13	unused
14	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X229	1
15	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X229	2
16	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X180	9
17	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X180	8
18	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X230	1
19	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X230	2
20	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X180	11
21	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X180	10
22	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X233	1
23	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X233	2
24	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X232	2
25	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X232	1
26	unused
27	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X055	33
28	unused
29	unused
30	unused
31	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X035	17
32	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X035	18
33	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X055	11
34	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X055	10
35	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X055	34
36	unused
37	unused
38	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X055	1
39	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X055	18
40	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X055	32
41	unused
42	unused
43	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X035	10
44	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X035	26
45	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X035	25
46	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X035	9
47	unused
48	unused
49	unused
50	unused
51	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X035	21
52	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X035	6
