X215

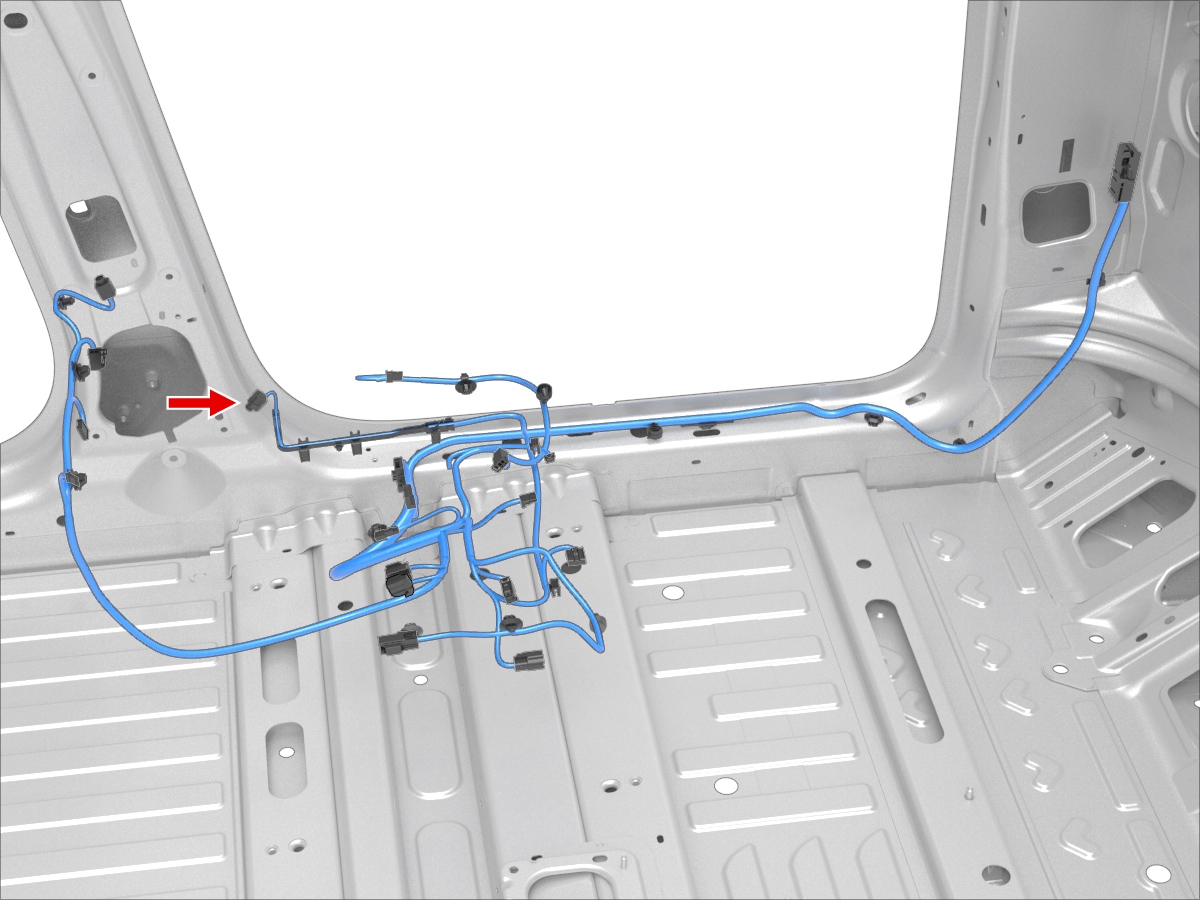

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | GEN | PIA-SRS-S | GY/GN | 0.35 | X032 | 2 | |||
| 2 | GEN | PIA-SRS-S | BU/YE | 0.35 | X032 | 1 |
