X300A

Tesla Part Number
1478980-00-A
Connector
DELPHI 13601424
Color
BK

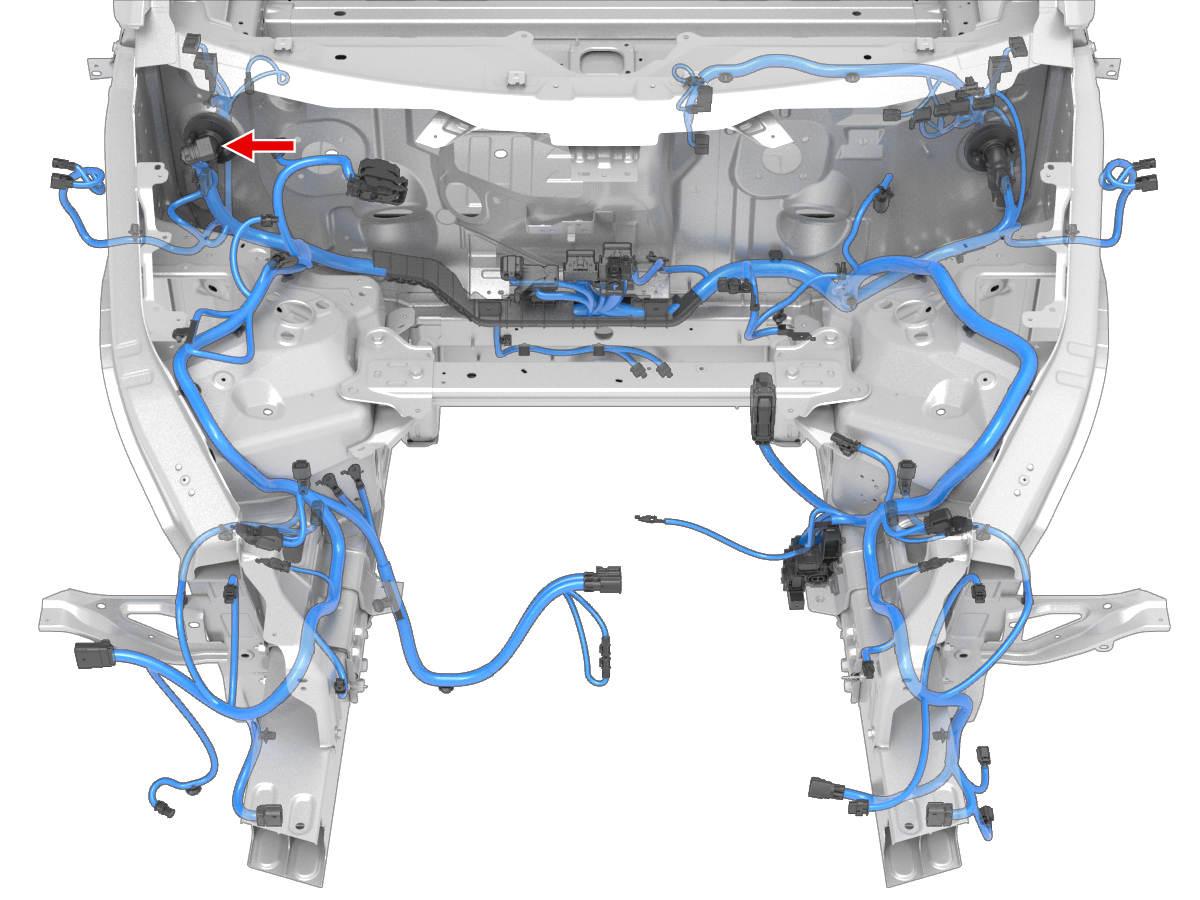

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP964286-12.8x0.8FSGN0.50DELPHI15327860X01045
2unused
3AMP964273-22.8x0.8FSBK2.50DELPHI15327859G01114
4AMP964273-22.8x0.8FSVT2.50DELPHI15327859X0123
