X322

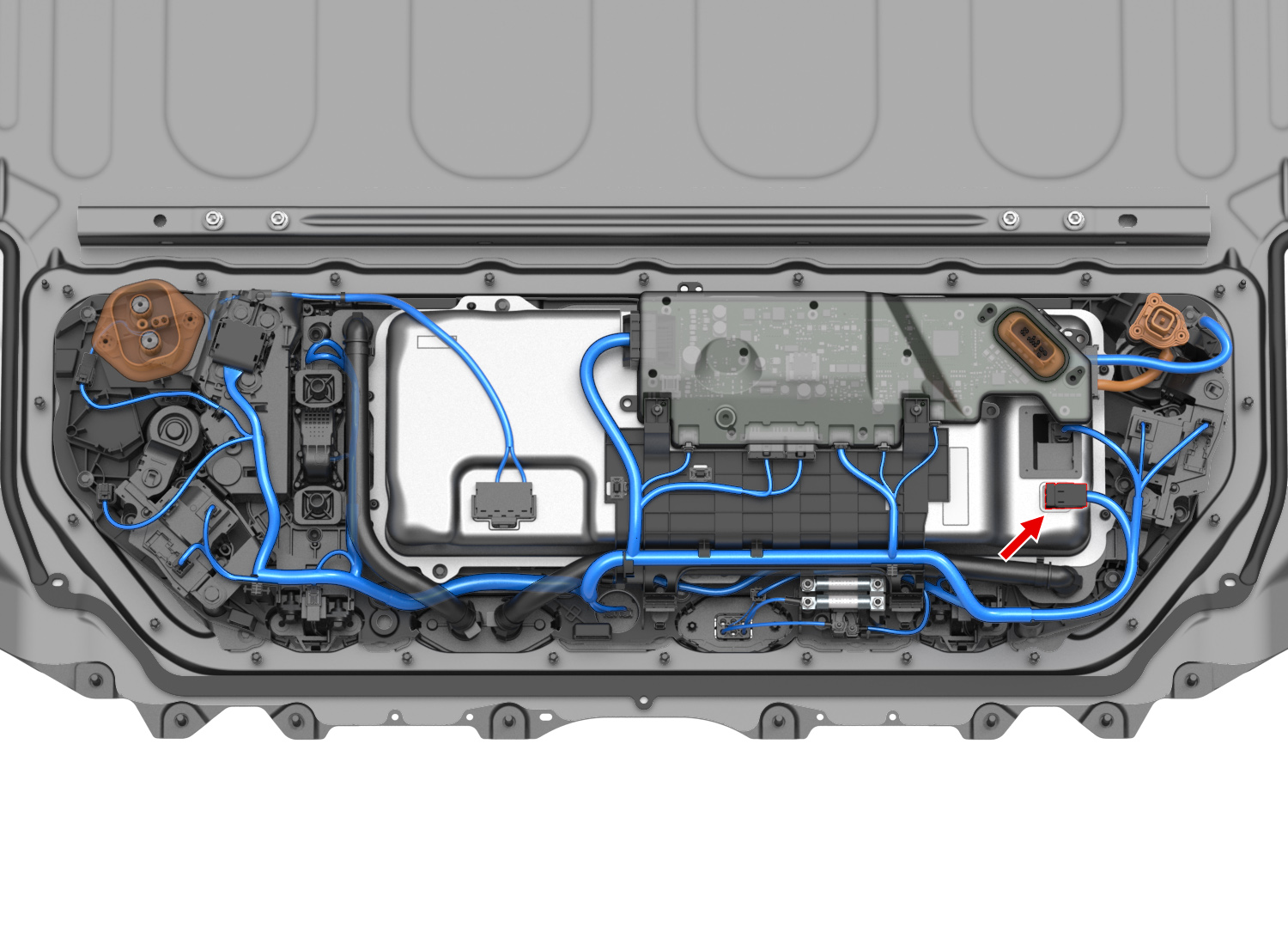

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | LEAR | E02430500 | 6.3x0.8F | OG/RD | 8.00 | X323 | 1 | ||
| 2 | LEAR | E02430500 | 6.3x0.8F | OG/BK | 8.00 | X324 | 1 |
