X324

Tesla Part Number
1657618-00-A
Connector
KS TERMINALS RNB14-5
Color
SN

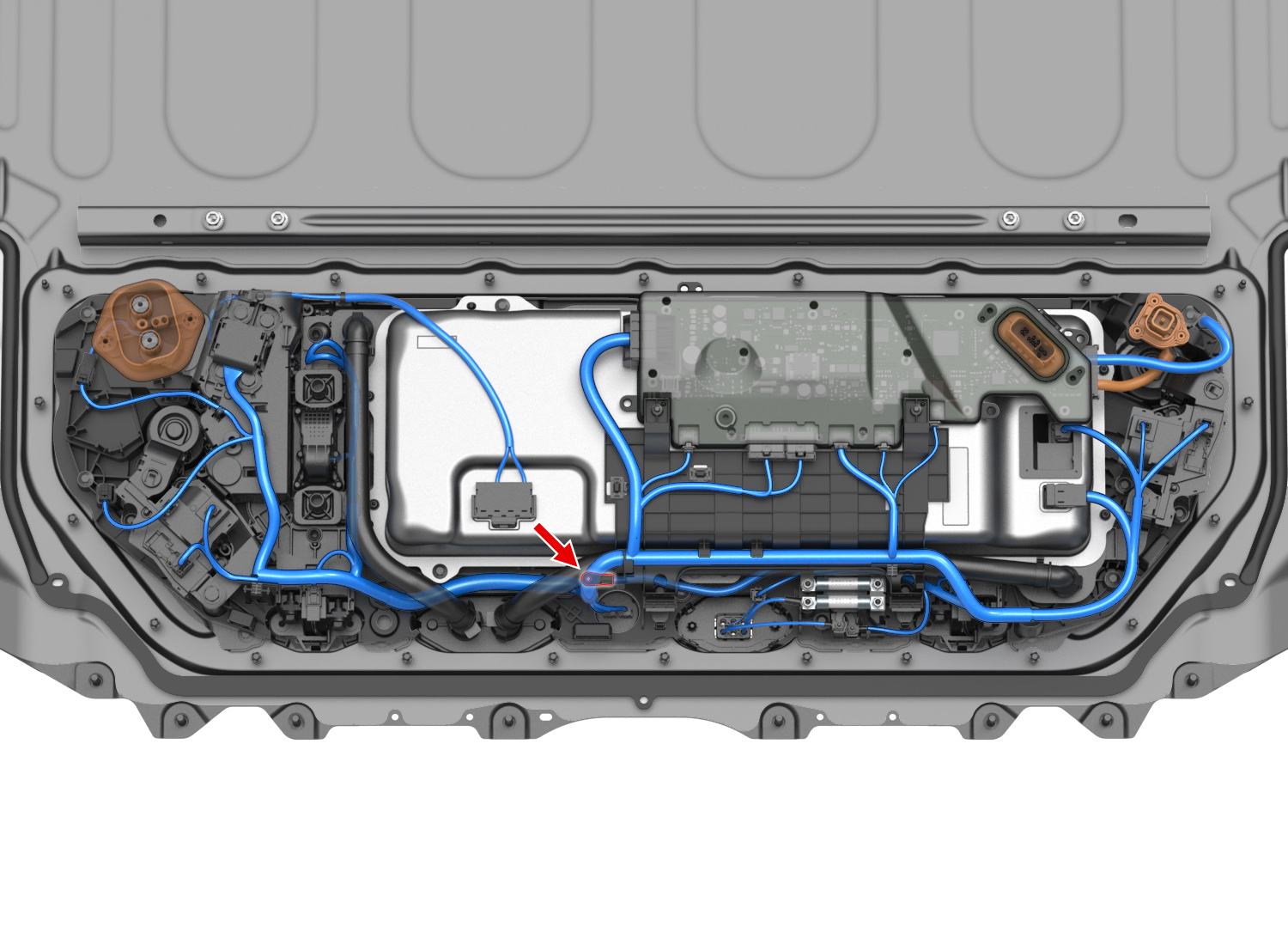

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1OG/BK8.00X3222
