X330

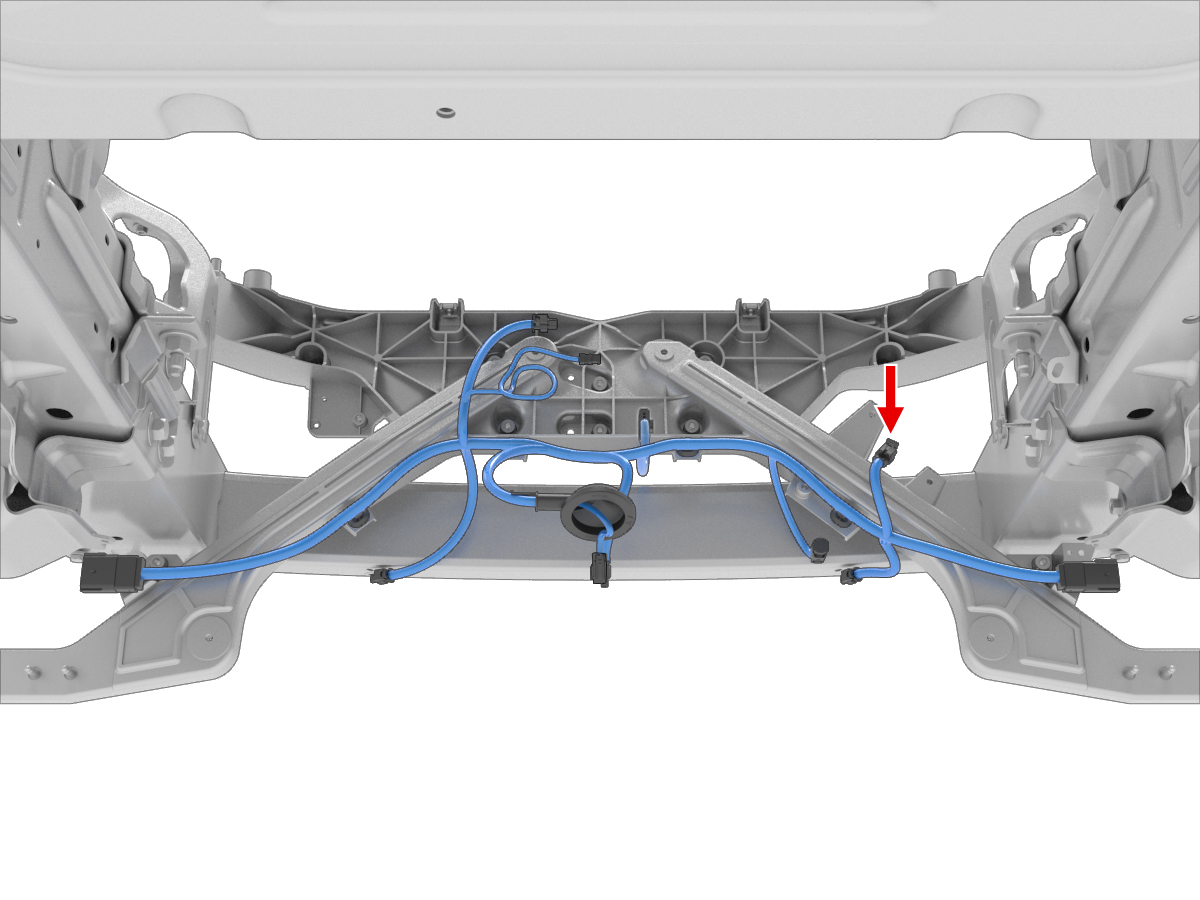

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 282403-1 | 1.5x0.8FS | WH | 0.35 | AMP | 281934-4 | X906M | 10 |
| 2 | AMP | 282403-1 | 1.5x0.8FS | BK | 0.35 | AMP | 281934-4 | X906M | 11 |
