X333

Tesla Part Number
1515032-00-A
Connector
AMP 2141466-1
Color
BK

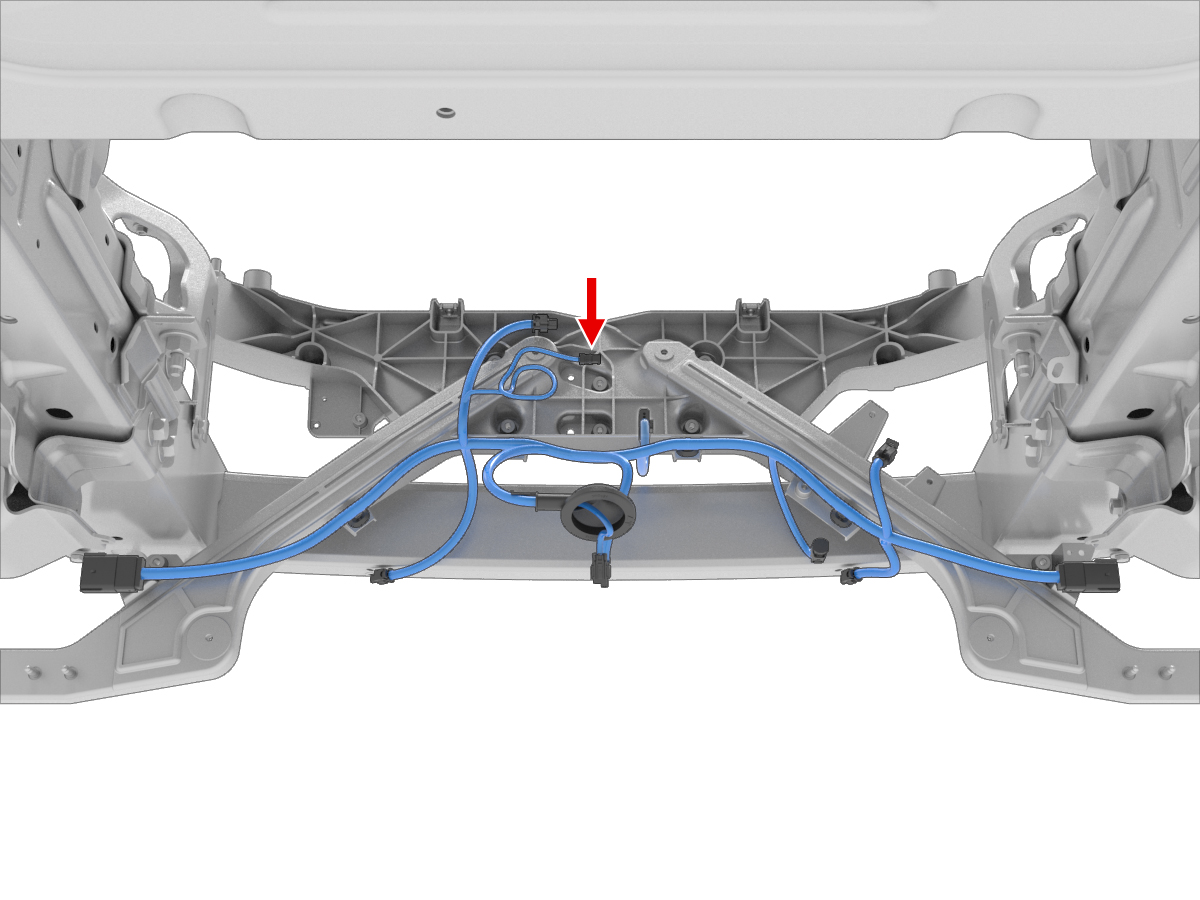

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2-1703930-10.50x0.40FVT0.35TESLAMAT-110-130X906M15
2AMP2-1703930-10.50x0.40FYE0.35TESLAMAT-110-130X906M12
3AMP2-1703930-10.50x0.40FGY0.35TESLAMAT-110-130X906M7
4unused
