X395

Tesla Part Number
1079896-00-A
Connector
AMP 1-1241370-3
Color
BK

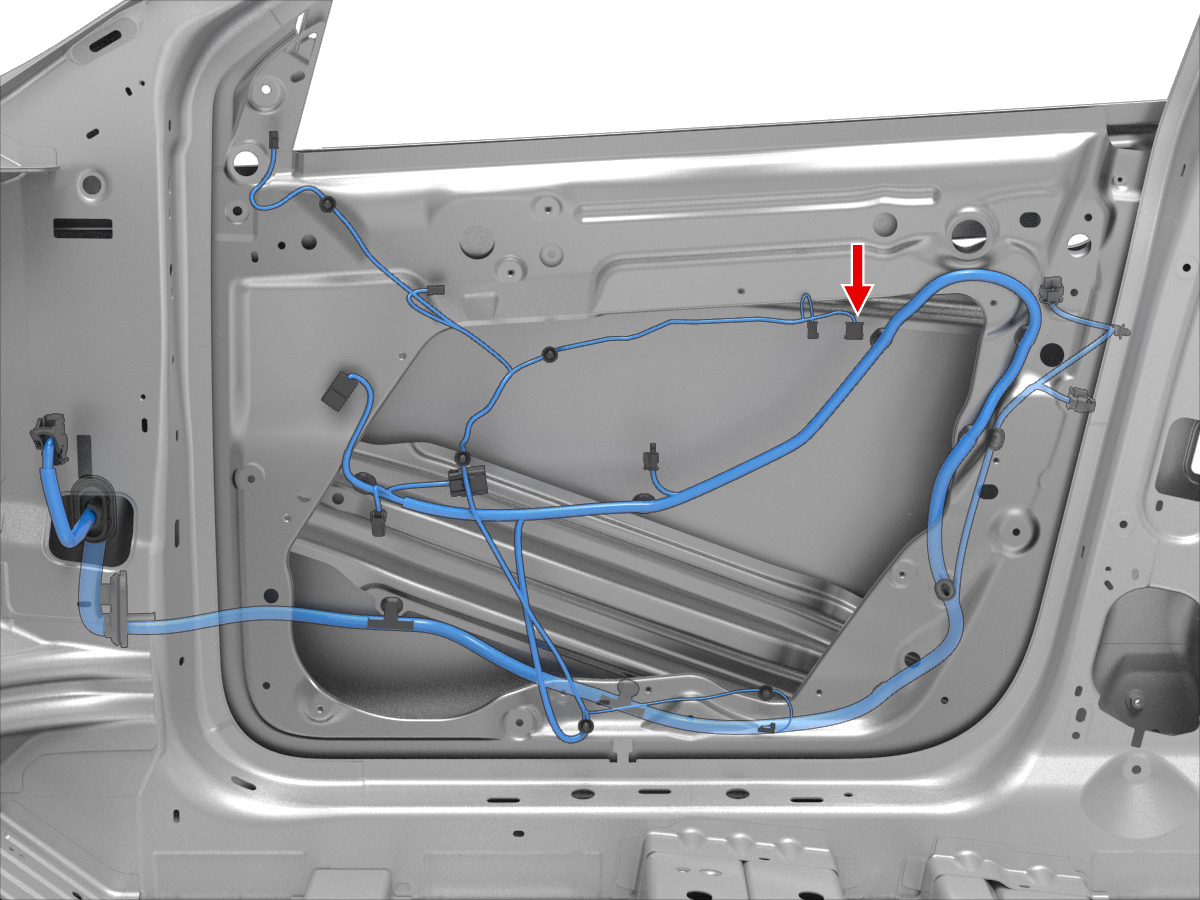

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FRD0.35X053A13
2AMP5-928999-10.63x0.63FYE0.35X053A27
3AMP5-928999-10.63x0.63FBN0.35X053A12
4AMP5-928999-10.63x0.63FVT0.35X053A26
5AMP5-928999-10.63x0.63FGY0.35X053A18
6AMP5-928999-10.63x0.63FBK0.35
