X463

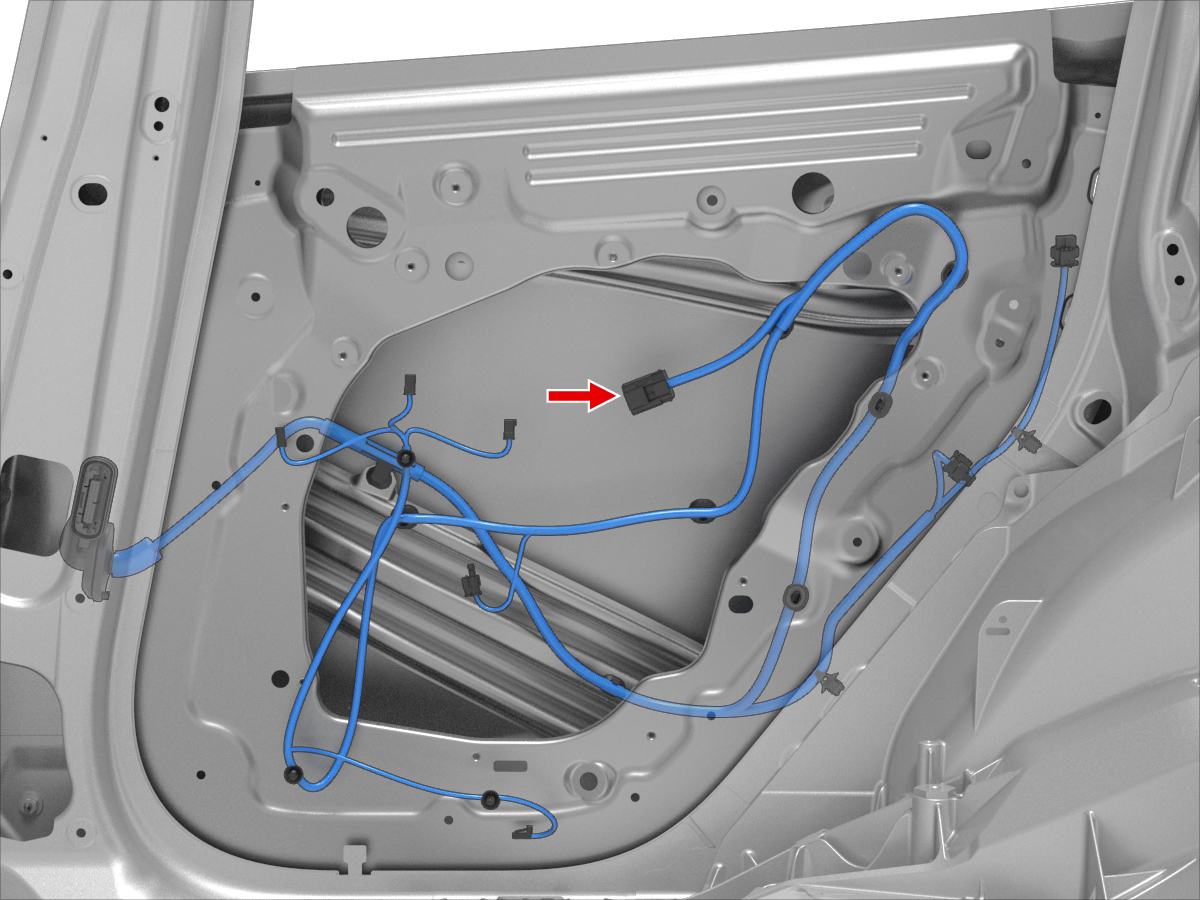

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13979933 | 2.8x0.8F | WH | 1.50 | X926F | 1 | ||
| 2 | unused | ||||||||
| 3 | DELPHI | 13979933 | 2.8x0.8F | VT | 1.50 | X926F | 2 | ||
| 4 | DELPHI | 33512053 | 2.8x0.8F | GY | 0.35 | X926F | 5 | ||
| 5 | unused | ||||||||
| 6 | DELPHI | 33512053 | 2.8x0.8F | BK | 0.35 | ||||
