X471

Tesla Part Number
1582039-01-B
Connector
AMPHENOL 10156818-A002LF
Color
BK

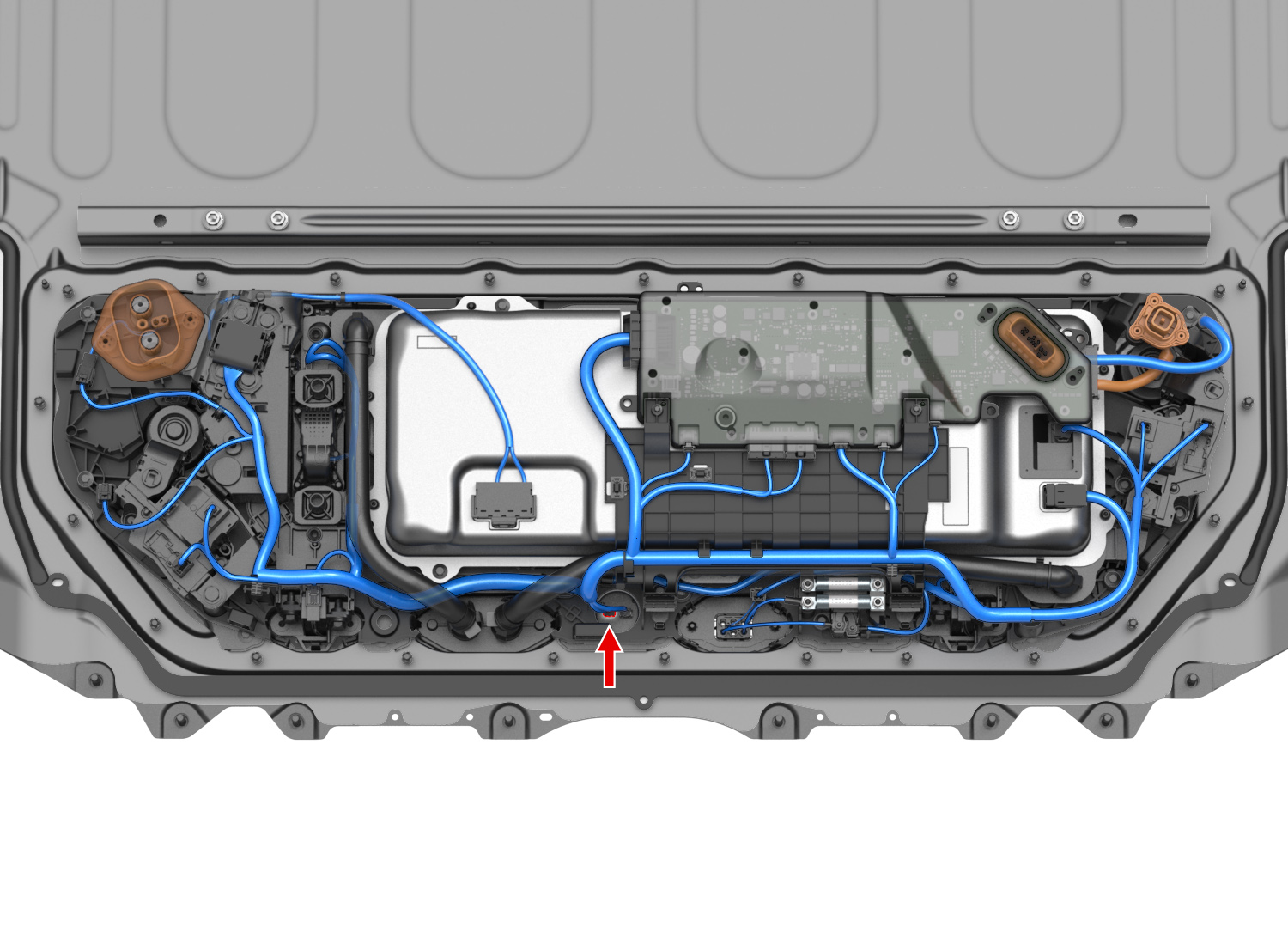

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMPHENOL10141272-112LF0.50FWH0.13X4822
2AMPHENOL10141272-112LF0.50FGN0.13X4821
