X503

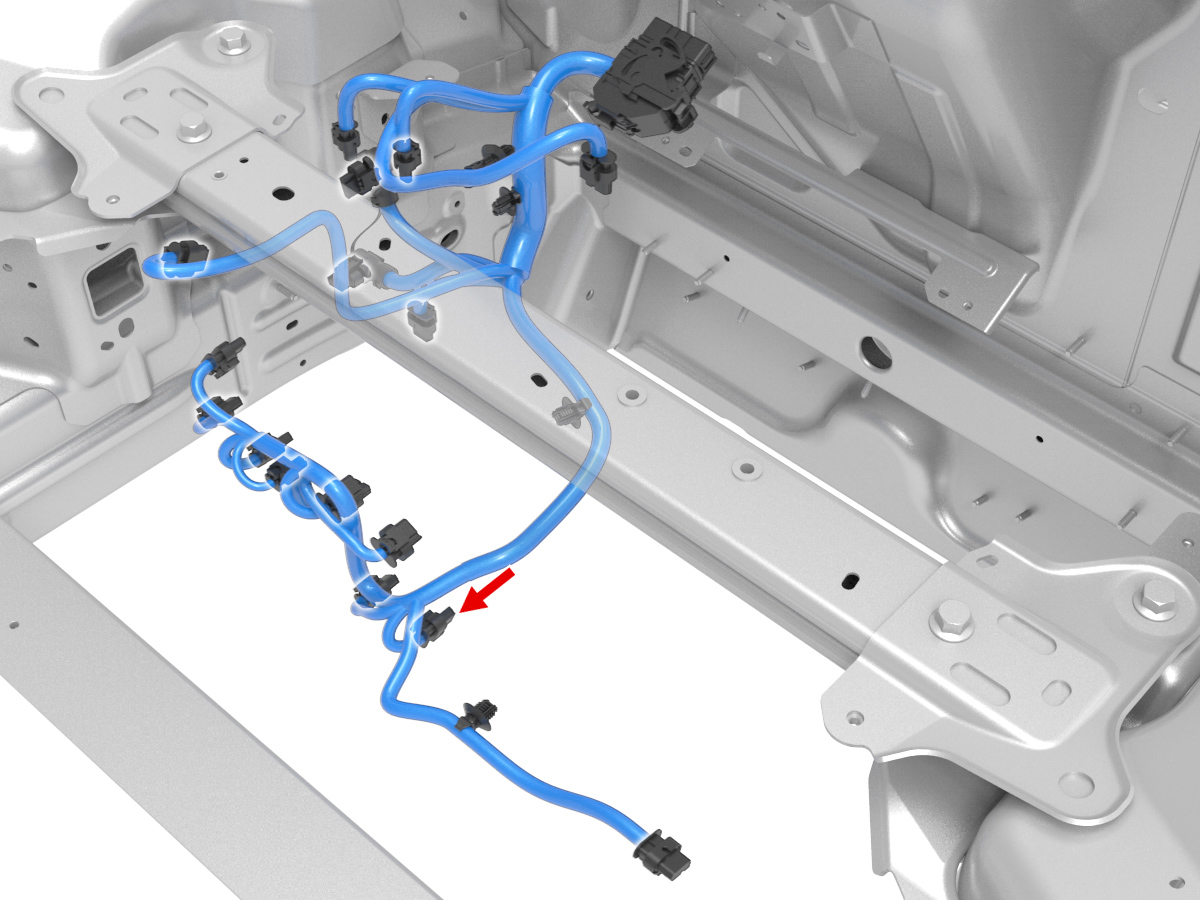

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452668-3 | 1.2x0.6FS | BU | 0.50 | AMP | 967067-1 | X021 | G4 |
| 2 | AMP | 7-1452668-3 | 1.2x0.6FS | WH | 0.50 | AMP | 967067-1 | X021 | E4 |
| 3 | AMP | 7-1452668-3 | 1.2x0.6FS | YE | 0.50 | AMP | 967067-1 | X021 | H4 |
| 4 | AMP | 7-1452668-3 | 1.2x0.6FS | RD | 0.50 | AMP | 967067-1 | X021 | F4 |
