X527

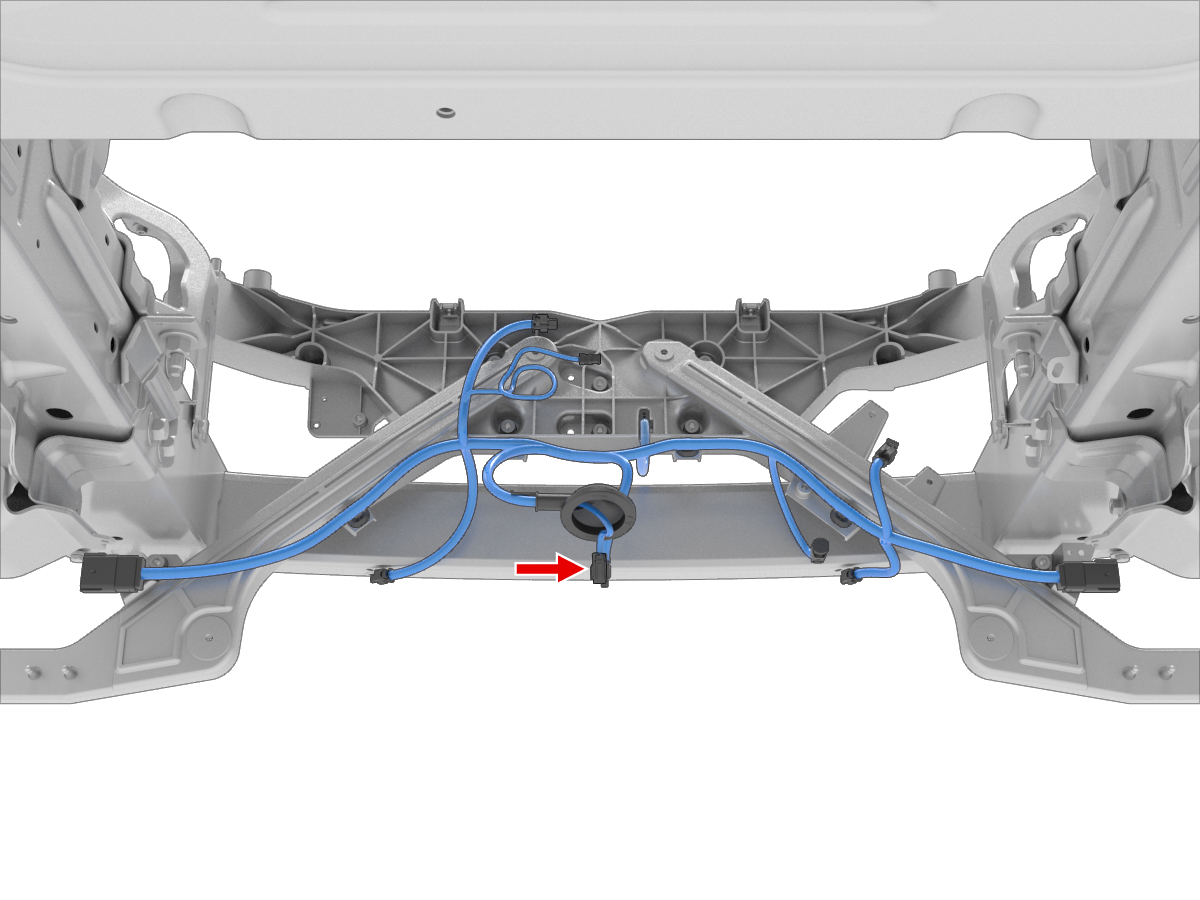

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-1471 | 1.8x0.64FS | RD | 0.50 | YAZAKI | 7157-7897-60 | X905M | 9 |
| 2 | YAZAKI | 7116-1471 | 1.8x0.64FS | BK | 0.50 | YAZAKI | 7157-7897-60 | X905M | 10 |
