X559_1

Tesla Part Number
1079658-00-A
Connector
KUM PH845-07010
Color
WT

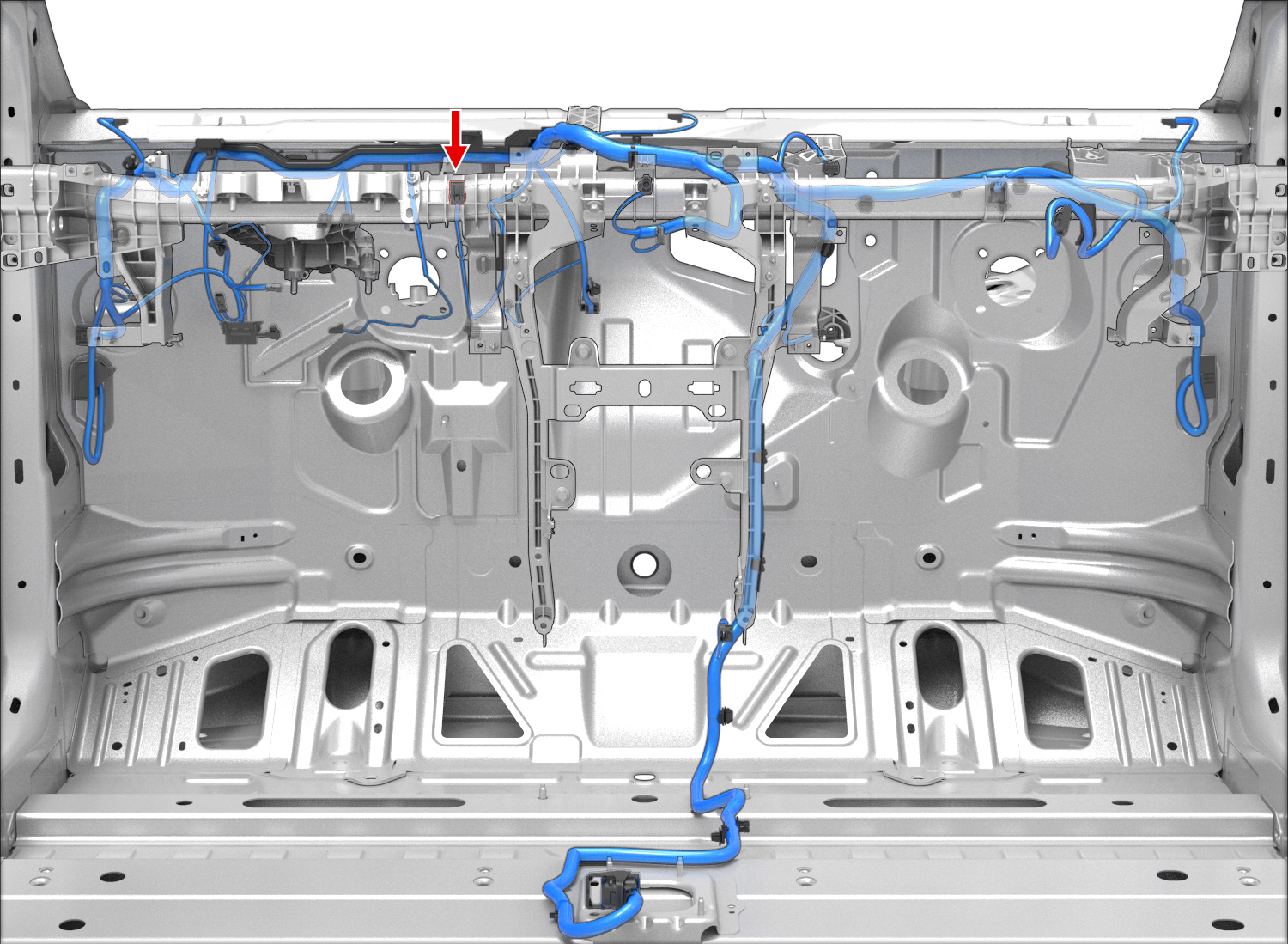

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1unused
2unused
3KUMMT095-290800.5x0.5FYE0.35X055_126
4KUMMT095-290800.5x0.5FGY0.35X055_119
5KUMMT095-290800.5x0.5FRD0.35X055_14
6KUMMT095-290800.5x0.5FBK0.35X055_121
7KUMMT095-290800.5x0.5FWH0.35X055_127
