X563

Tesla Part Number
1108466-00-A
Connector
AMP 2177586-1
Color
BK

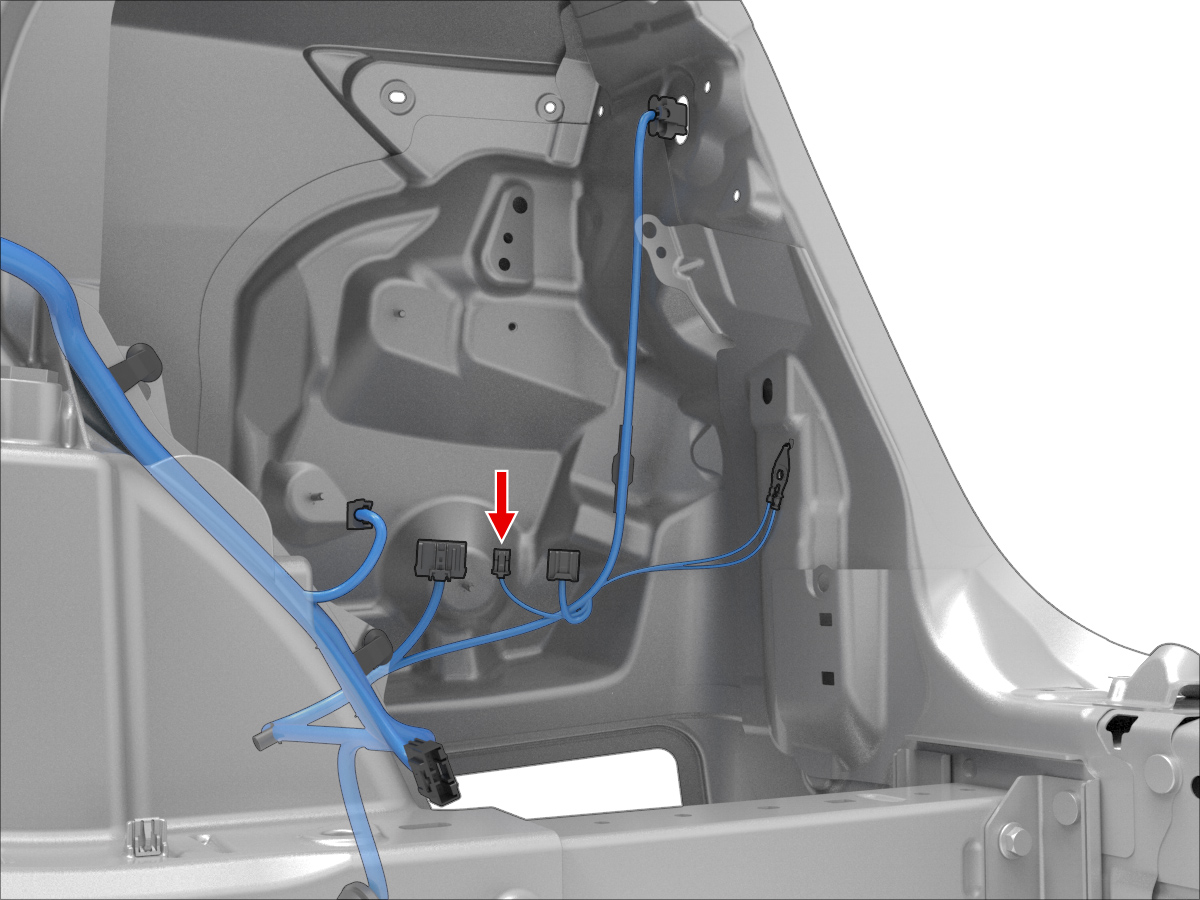

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1unused
2unused
3unused
4unused
5unused
6unused
7AMP2-1703930-10.50x0.40FVT0.35X935M50
8AMP2-1703930-10.50x0.40FGN0.35X935M51
