X577

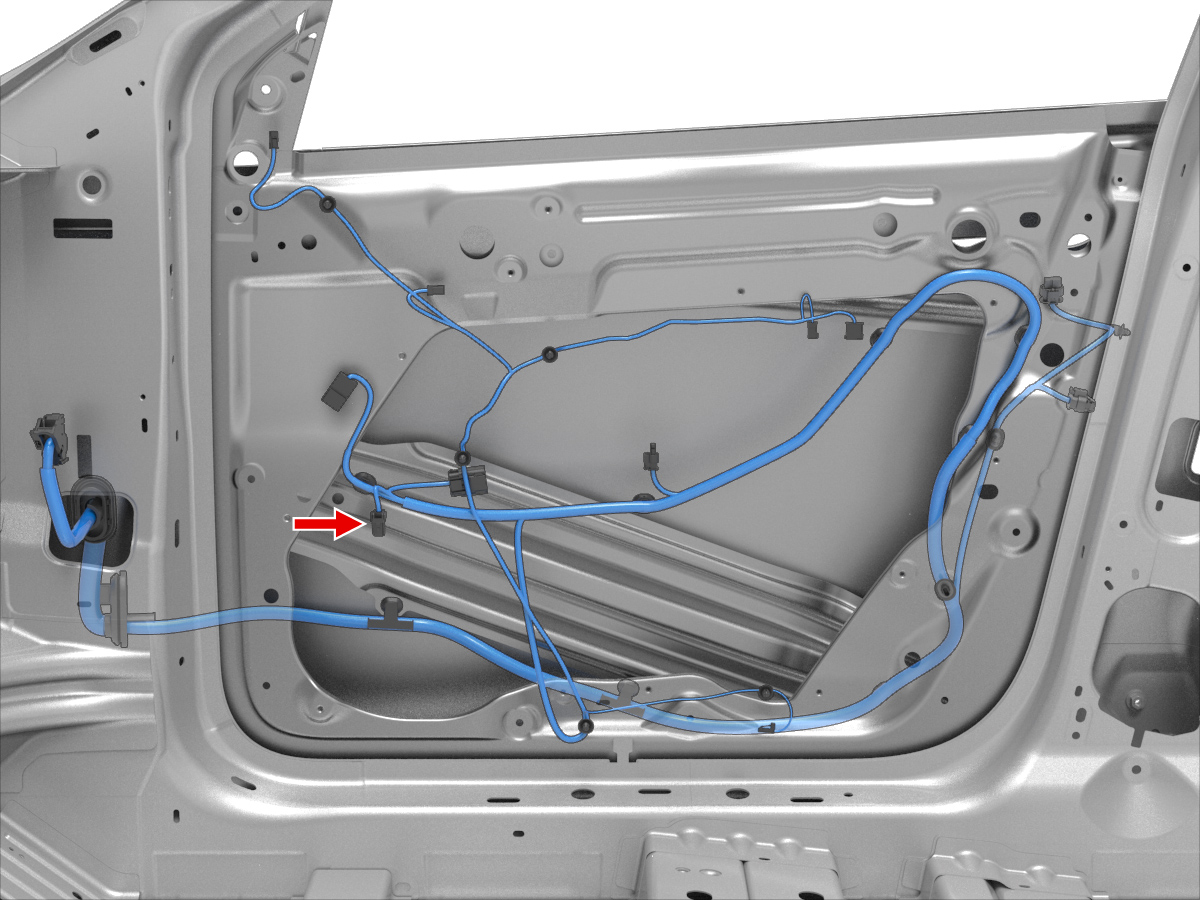

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-6316-02 | 1.5x0.8F | GY | 1.00 | X053A | 29 | ||
| 2 | YAZAKI | 7116-6316-02 | 1.5x0.8F | TN | 1.00 | X053A | 30 |
