X600

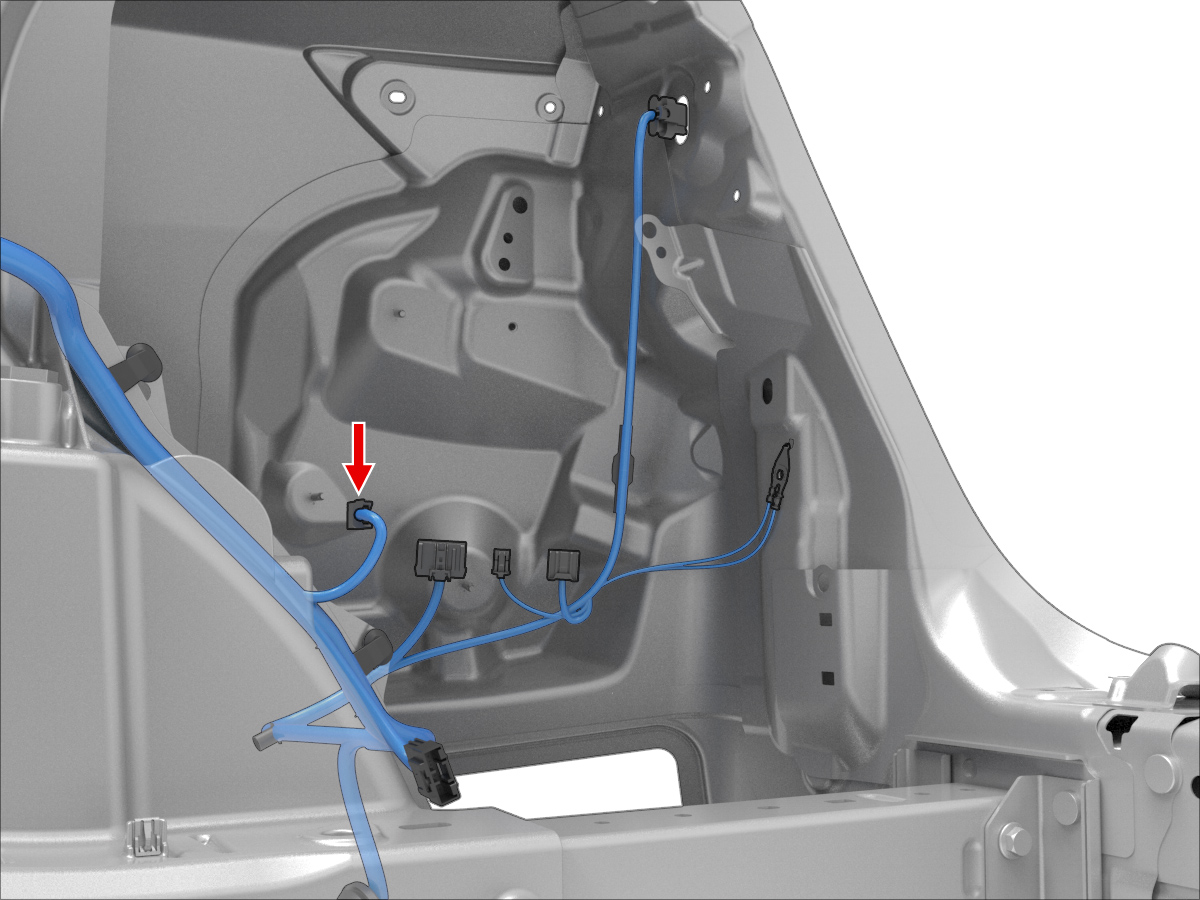

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0214 | 1.5x0.64F | GN | 1.50 | X561 | 9 | ||
| 2 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD | 1.50 | X561 | 3 | ||
| 3 | SUMITOMO | 8240-0214 | 1.5x0.64F | VT | 1.50 | X561 | 4 | ||
| 4 | SUMITOMO | 8240-0214 | 1.5x0.64F | BN | 1.50 | X561 | 10 |
