X650

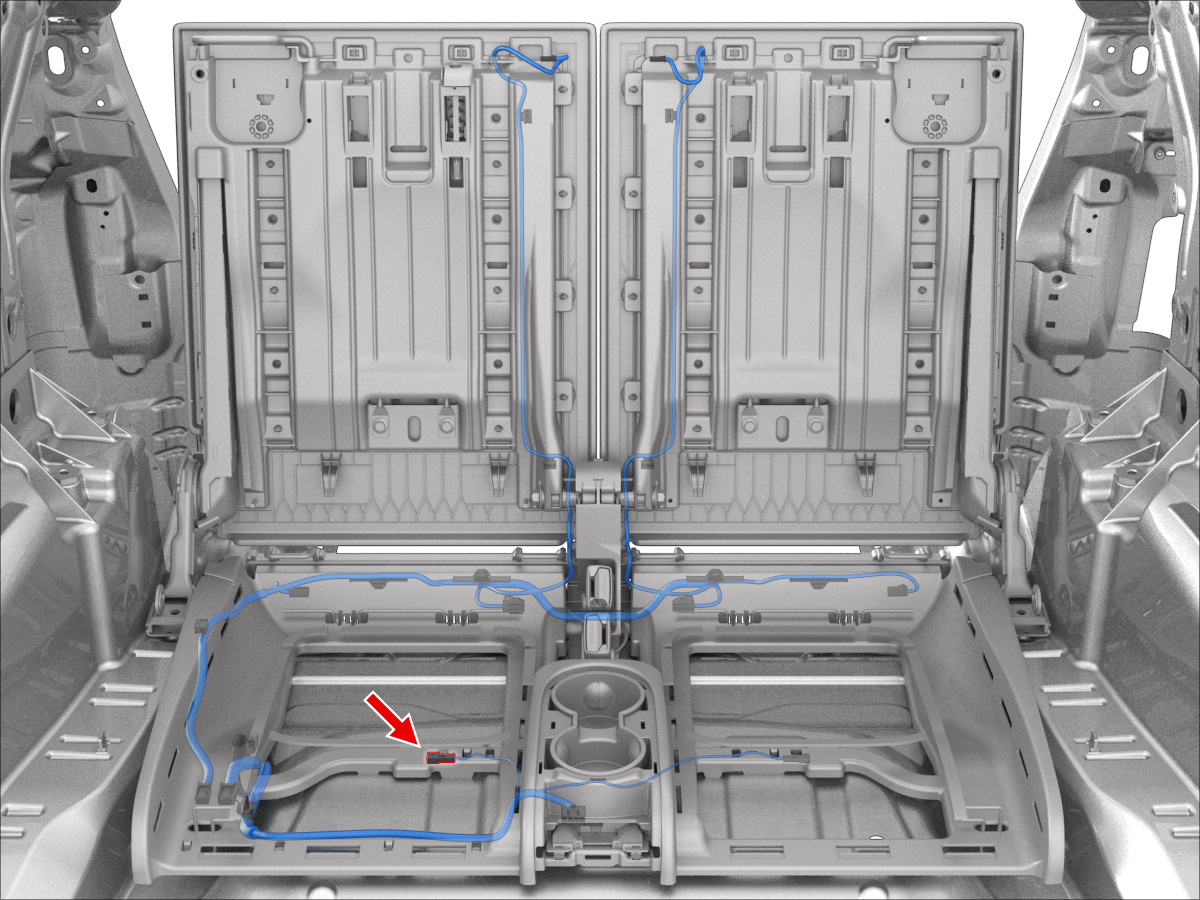

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 6-928918-1 | 0.63x0.63M | YE | 0.35 | X946F | 2 | ||
| 2 | AMP | 6-928918-1 | 0.63x0.63M | GY | 0.35 | X946F | 5 |
