X658

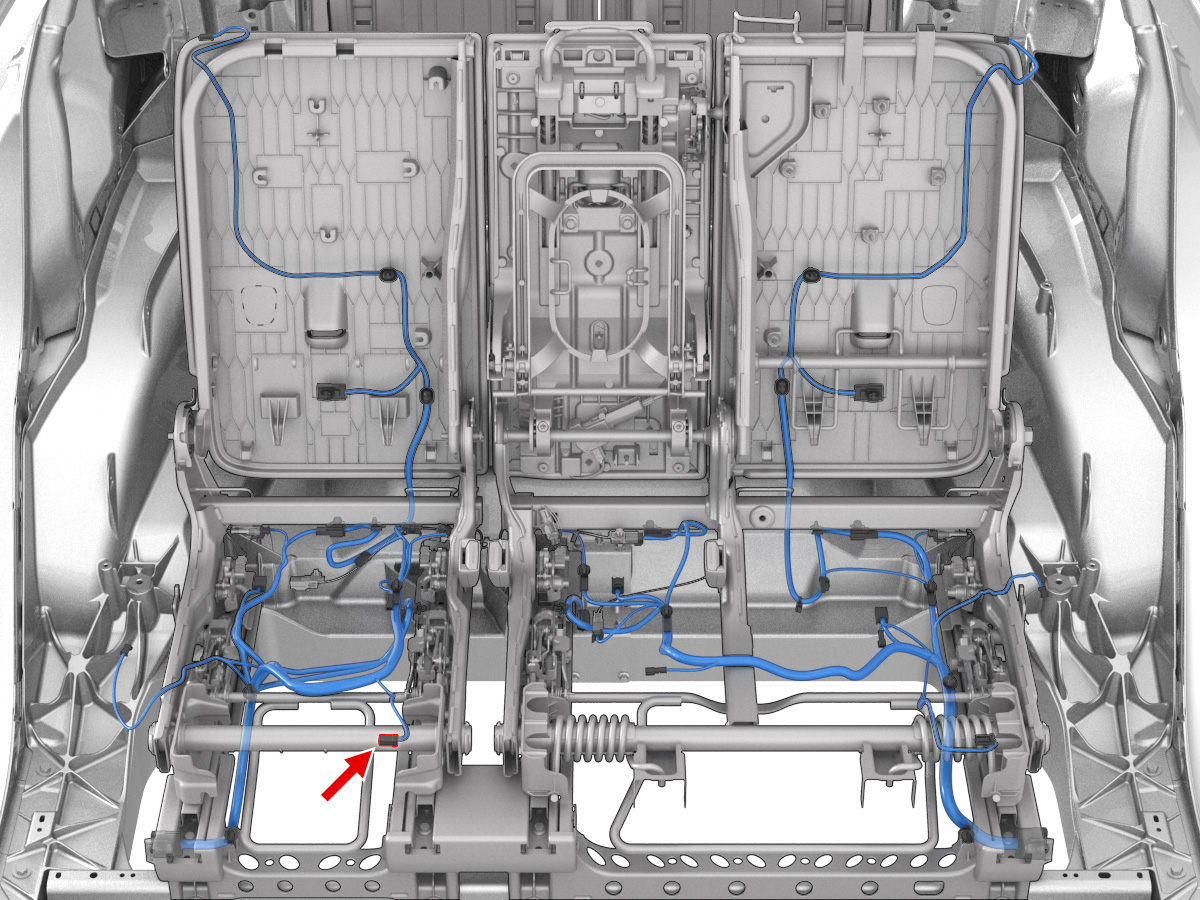

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0215 | 1.5x0.64F | BU | 0.50 | X942M | 9 | ||
| 2 | SUMITOMO | 8240-0215 | 1.5x0.64F | WH | 0.50 | X942M | 10 |
