X660

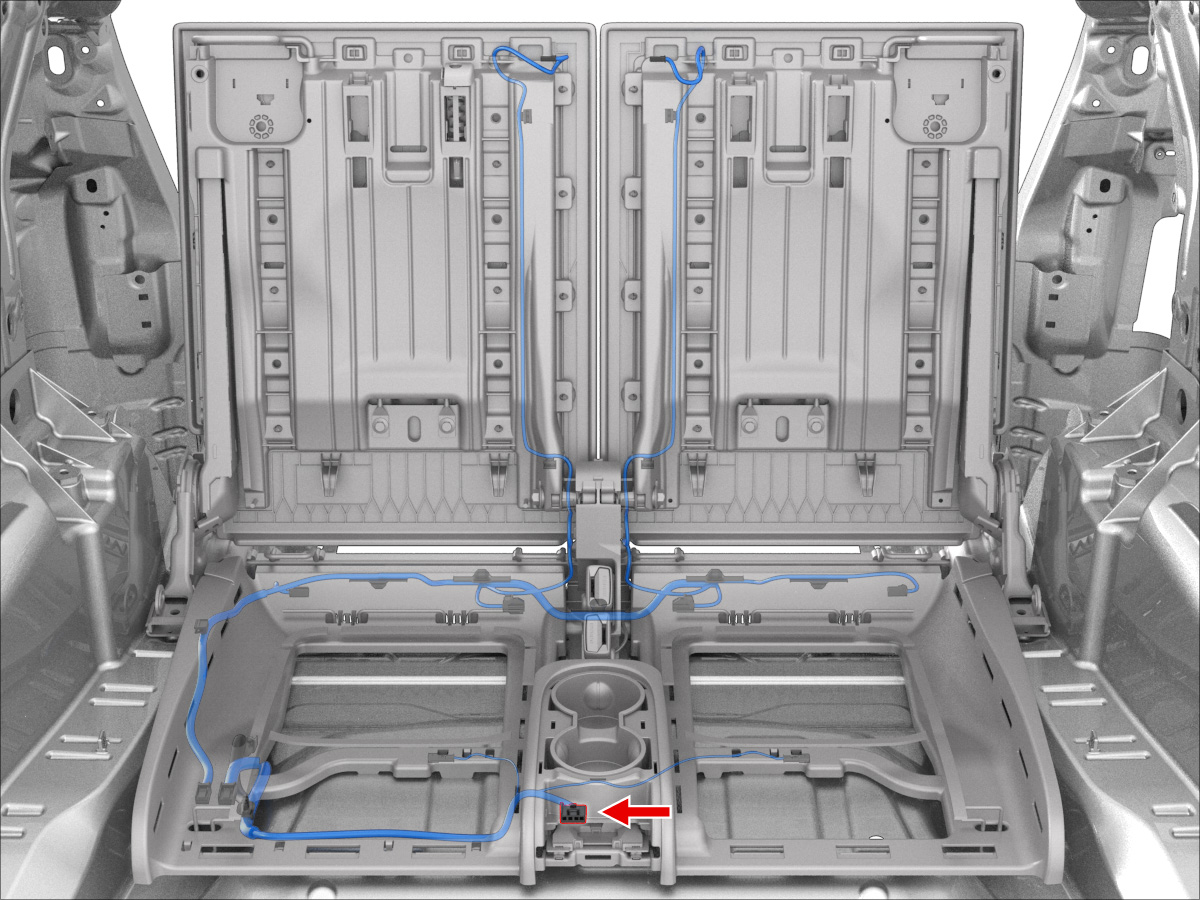

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | DELPHI | 12066214 | 2.8x0.8F | BK | 2.00 | X946F | 8 | ||
| B | unused | ||||||||
| C | unused | ||||||||
| D | DELPHI | 12066214 | 2.8x0.8F | GN | 2.00 | X946F | 1 | ||
