X667A

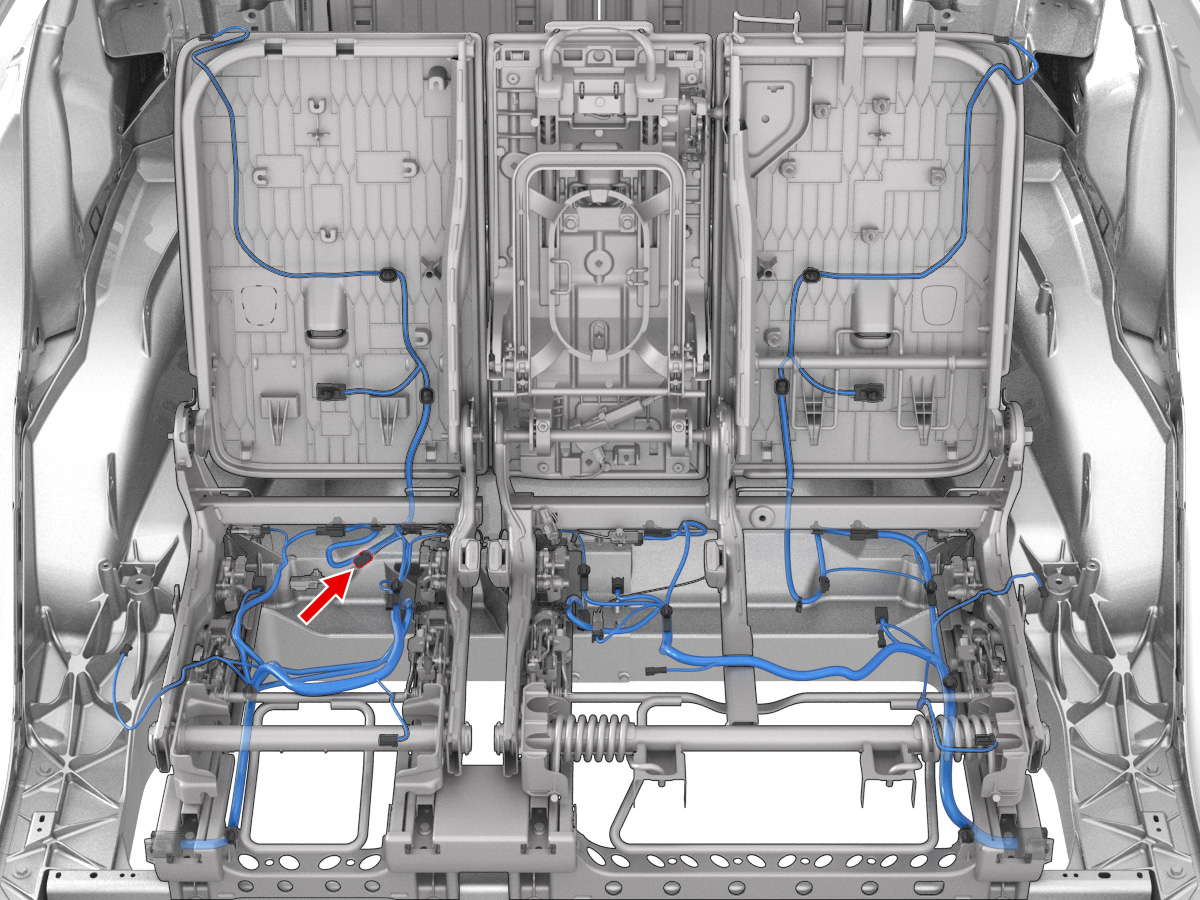

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4020 | 2.3F | WH | 0.50 | X942M | 4 | ||
| 2 | YAZAKI | 7116-4020 | 2.3F | BU | 0.50 | X942M | 3 |
