X671A

Tesla Part Number
1042591-00-A
Connector
SUMITOMO 6098-5695
Color
WH

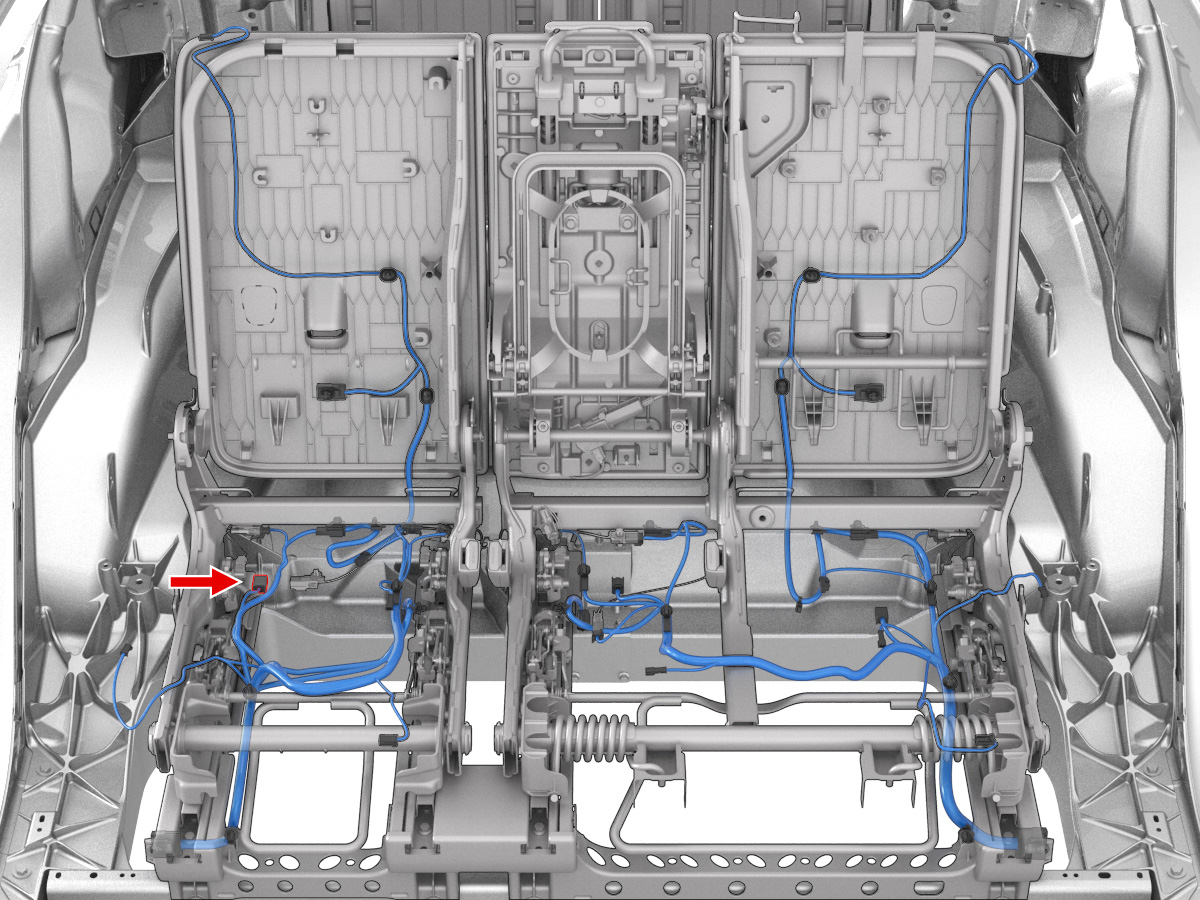

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8240-02151.5x0.64FBK0.50X942M12
2unused
3unused
4SUMITOMO8240-02151.5x0.64FVT0.50X942M17
5SUMITOMO8240-02151.5x0.64FBU0.35X942M2
6unused
7unused
8SUMITOMO8240-02151.5x0.64FBK0.35X942M13
