X802A

Tesla Part Number
1055888-03-A
Connector
ROSENBERGER 59Z027-001-D
Color
BO

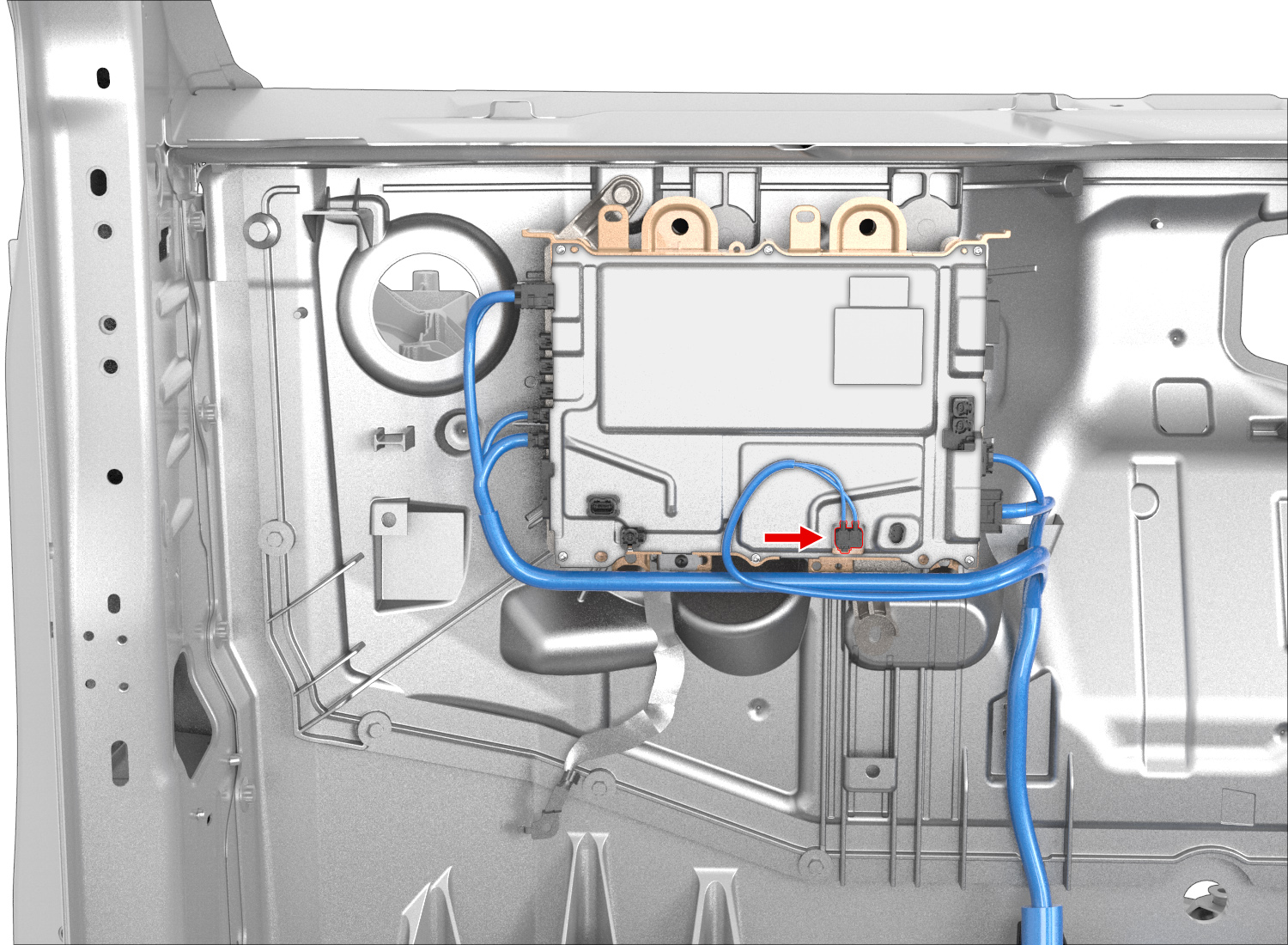

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K28H-1M4/90A4COAXBKD302X8291
2ROSENBERGER59K28H-1M4/90A4COAXBKD302X8271
