X816

Tesla Part Number
1517951-01-A
Connector
ROSENBERGER 59Z143-000-B
Color
WH

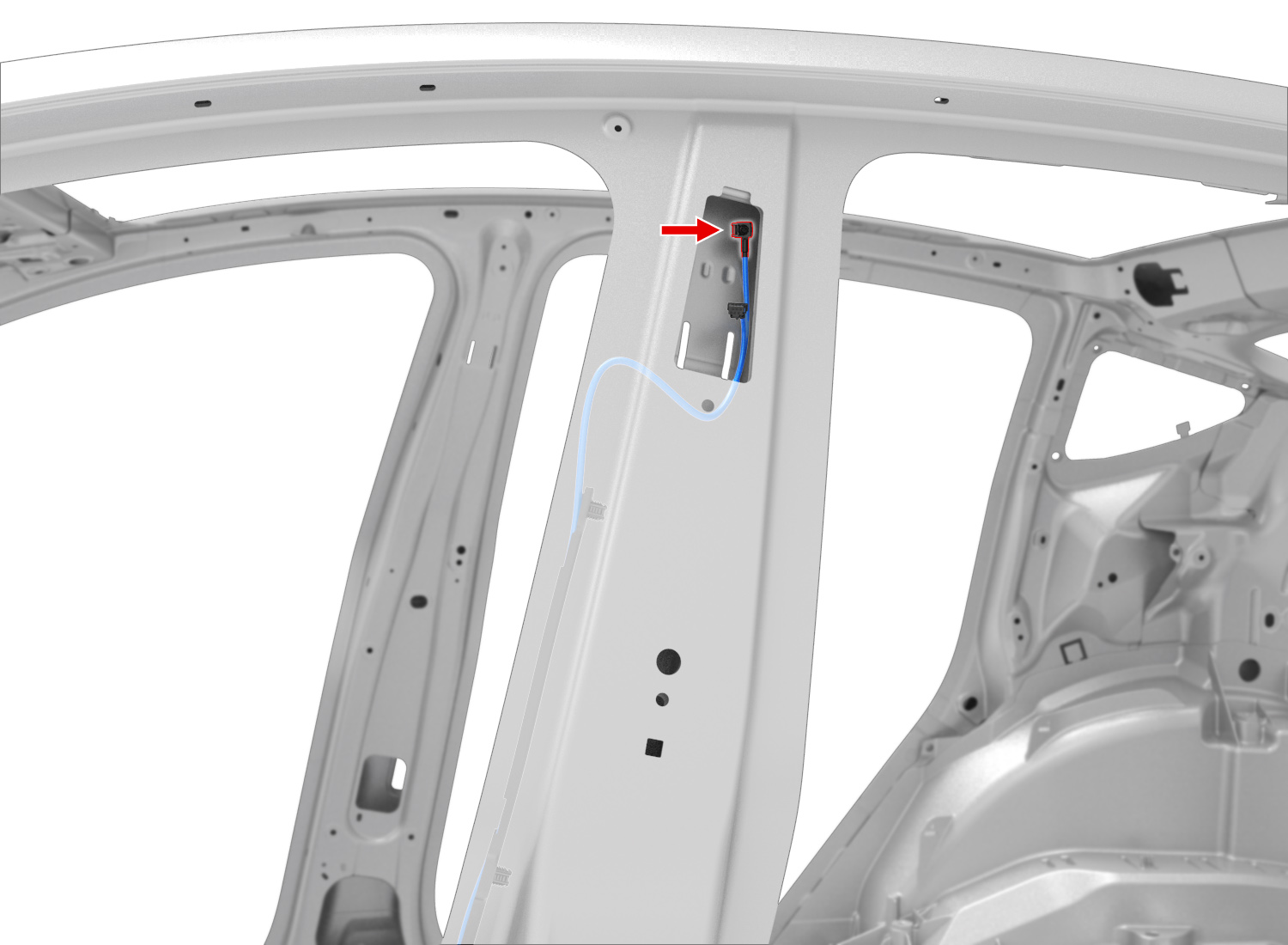

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K26A-1M4Z4COAXBKD302X822F1
