X886F

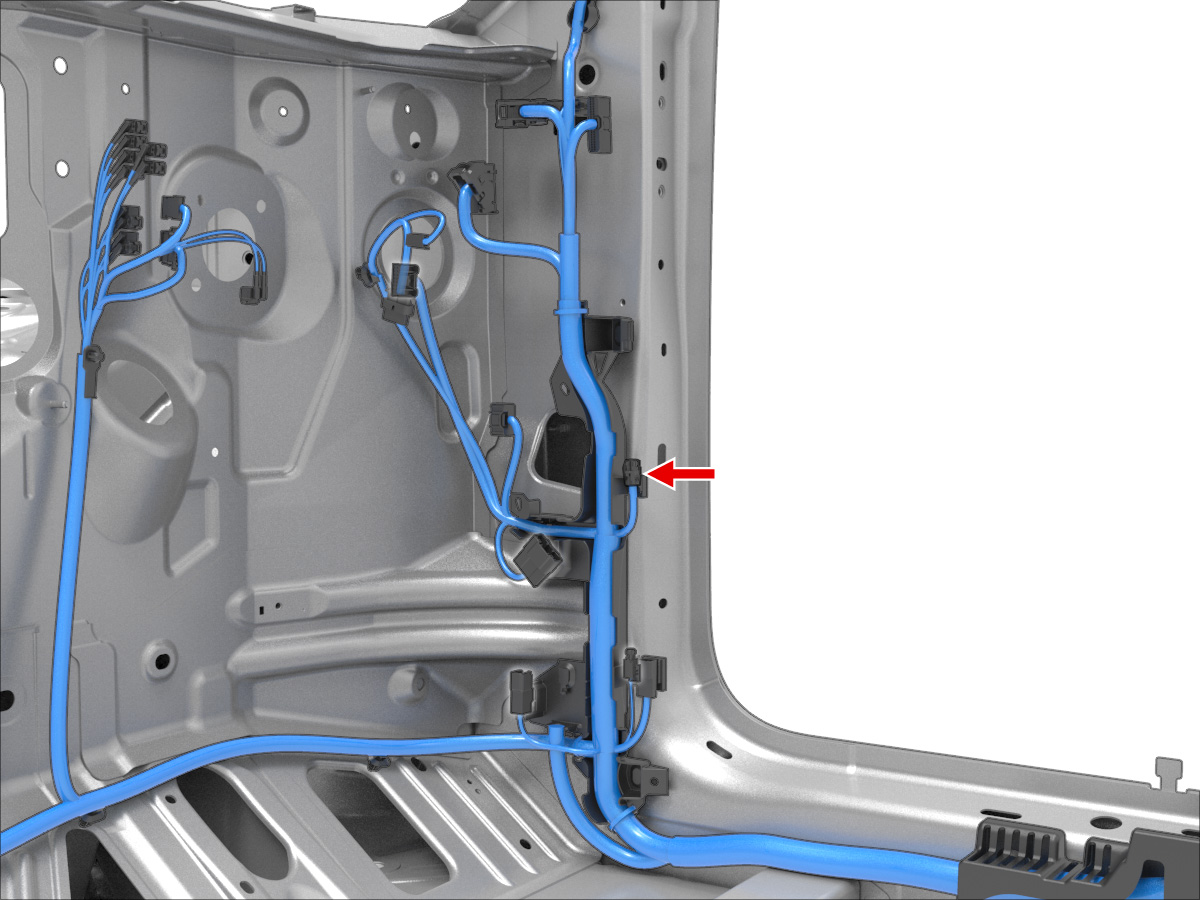

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2298510-1 | COAX | BK | D462 | X834 | 1 | ||
| 2 | unused | ||||||||
| 3 | AMP | 2298488-1 | COAX | BK | D302 | X896 | 1 | ||
| 4 | AMP | 2298510-1 | COAX | BK | D462 | X880 | 1 | ||
