X906M

Tesla Part Number

1029115-00-B

Connector

MOLEX 33482-8601

Color

BK

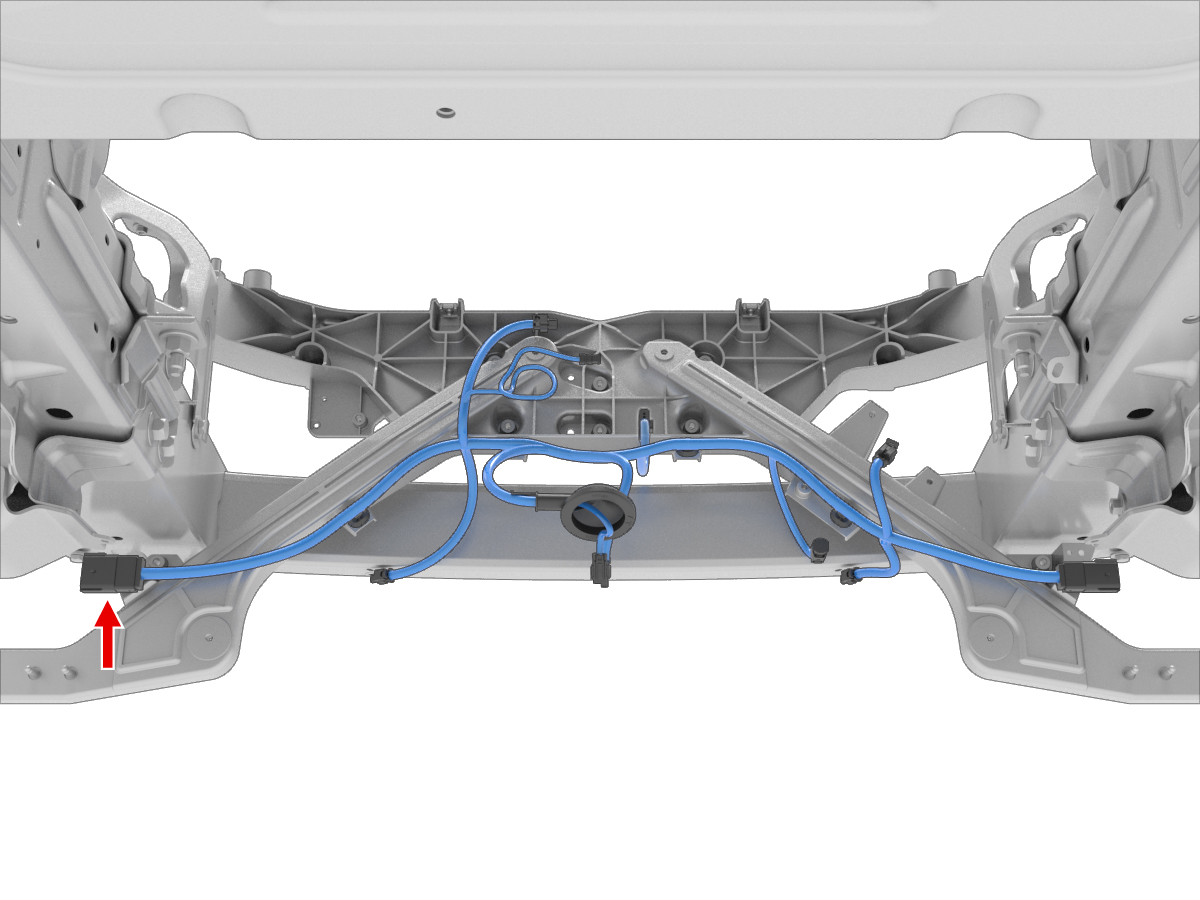

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X506	3
2	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X506	4
3	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X506	2
4	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240
5	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X104	3
6	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X104	2
7	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X333	3
8	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X332	3
9	MOLEX	33000-0004	1.5x0.8M	BN	0.35	TESLA	MAT-120-240	X487	2
10	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X330	1
11	MOLEX	33000-0004	1.5x0.8M	BK	0.35	TESLA	MAT-120-240	X330	2
12	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X333	2
13	MOLEX	33000-0004	1.5x0.8M	TN	0.35	TESLA	MAT-120-240	X332	2
14	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X332	1
15	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X333	1
16	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X487	3
