X908F

Tesla Part Number

1849226-01-A

Connector

KSE K20F01202

Color

BK

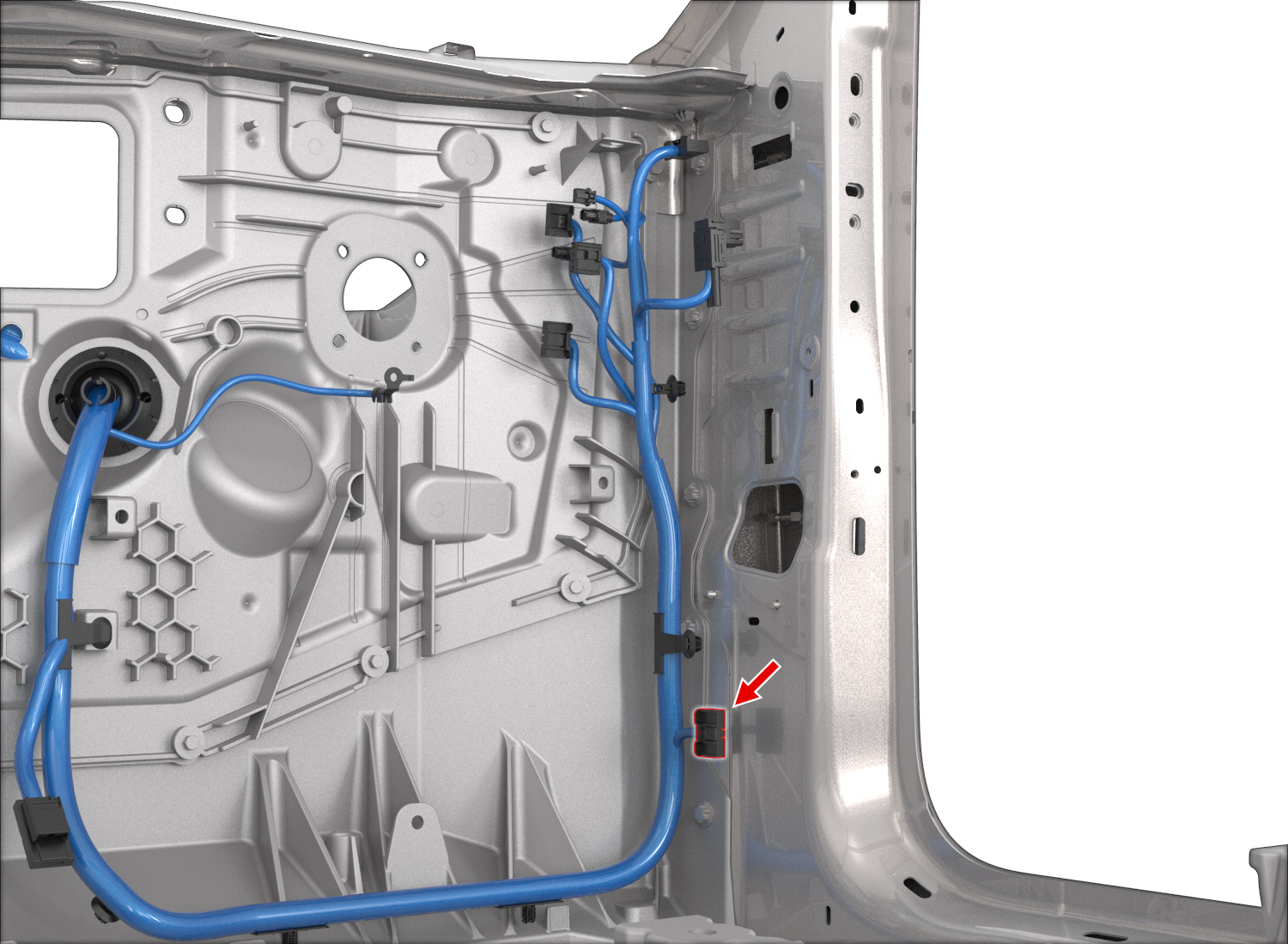

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	TN	2.00			X010	76
2	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X010	13
3	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X010	28
4	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X151	17
5	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X151	29
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X602	1
7	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X602	2
8	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X037	28
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X057	1
10	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X911F	7
11	SUMITOMO	8100-3625	0.64x0.64F	DKGN/WH	0.35
12	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35
13	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X173	4
14	unused
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X173	7
17	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X911F	6
18	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35
19	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35
20	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X151	31
21	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X151	18
22	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X905F	11
23	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X905F	12
24	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X905F	5
25	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X905F	6
26	SUMITOMO	8240-0213	1.5x0.64F	TN	1.00			X918M	1
