X908M

Tesla Part Number

1849227-01-A

Connector

KSE K30M31102

Color

BK

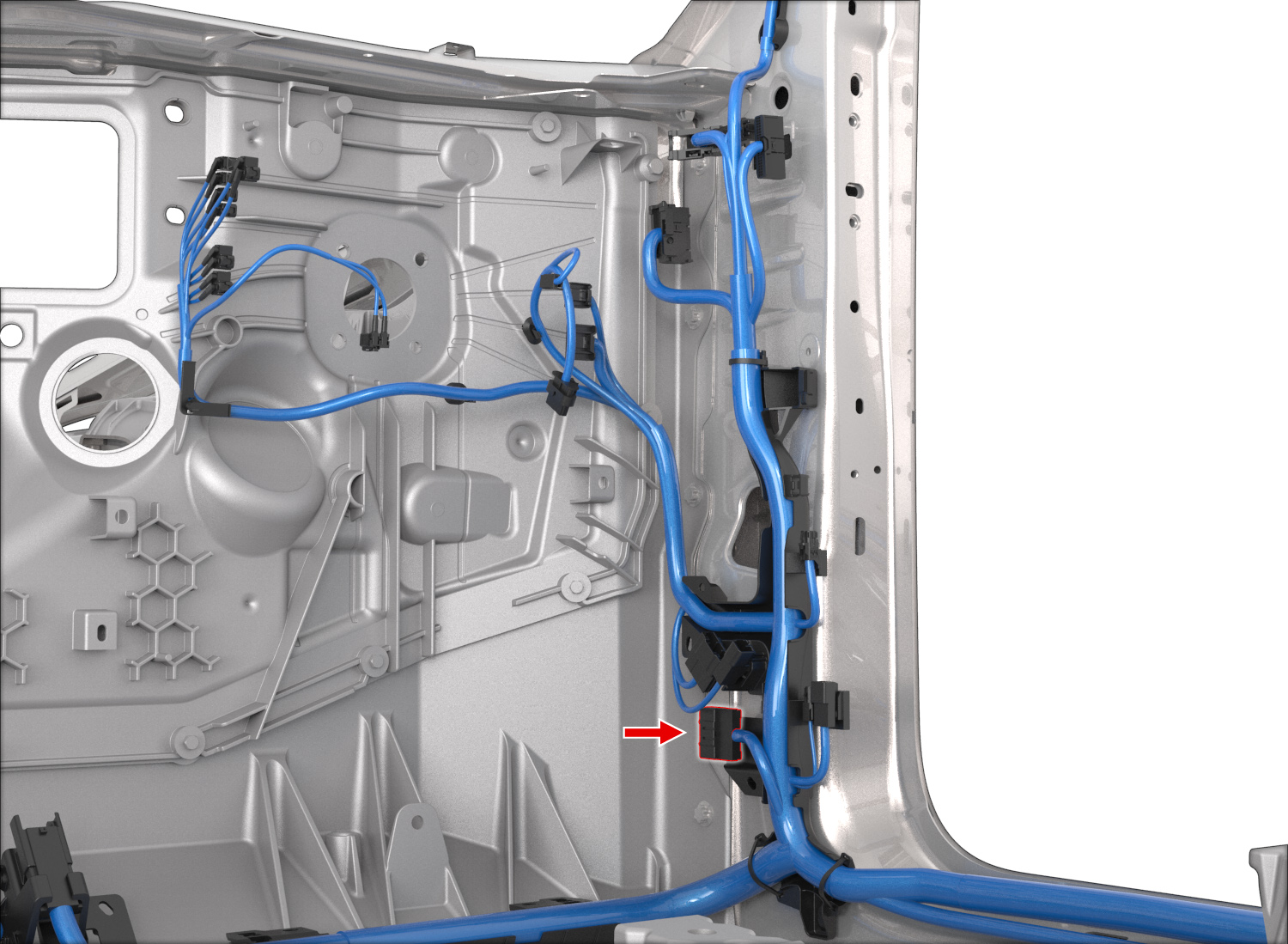

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	TN	2.00			X171	12
2	SUMITOMO	8100-3623	0.64x0.64M	YE/LTBU	0.35			X175	5
3	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X175	6
4	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X952M	4
5	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X952M	5
6	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X175	7
7	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X175	8
8	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50			X059	30
9	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X059	14
10	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X098	3
11	SUMITOMO	8100-3623	0.64x0.64M	DKGN/WH	0.35			X050A	1
12	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X050A	2
13	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X051	43
14	unused
15	unused
16	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X051	37
17	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X952M	9
18	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X486	6
19	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X486	5
20	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X952M	2
21	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X952M	3
22	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X201	47
23	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X201	48
24	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X201	46
25	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X201	45
26	SUMITOMO	8230-4924	1.5x0.6M	TN	1.00			X098	18
