X940F

Tesla Part Number
1042589-00-A
Connector
SUMITOMO 6098-5677
Color
WH

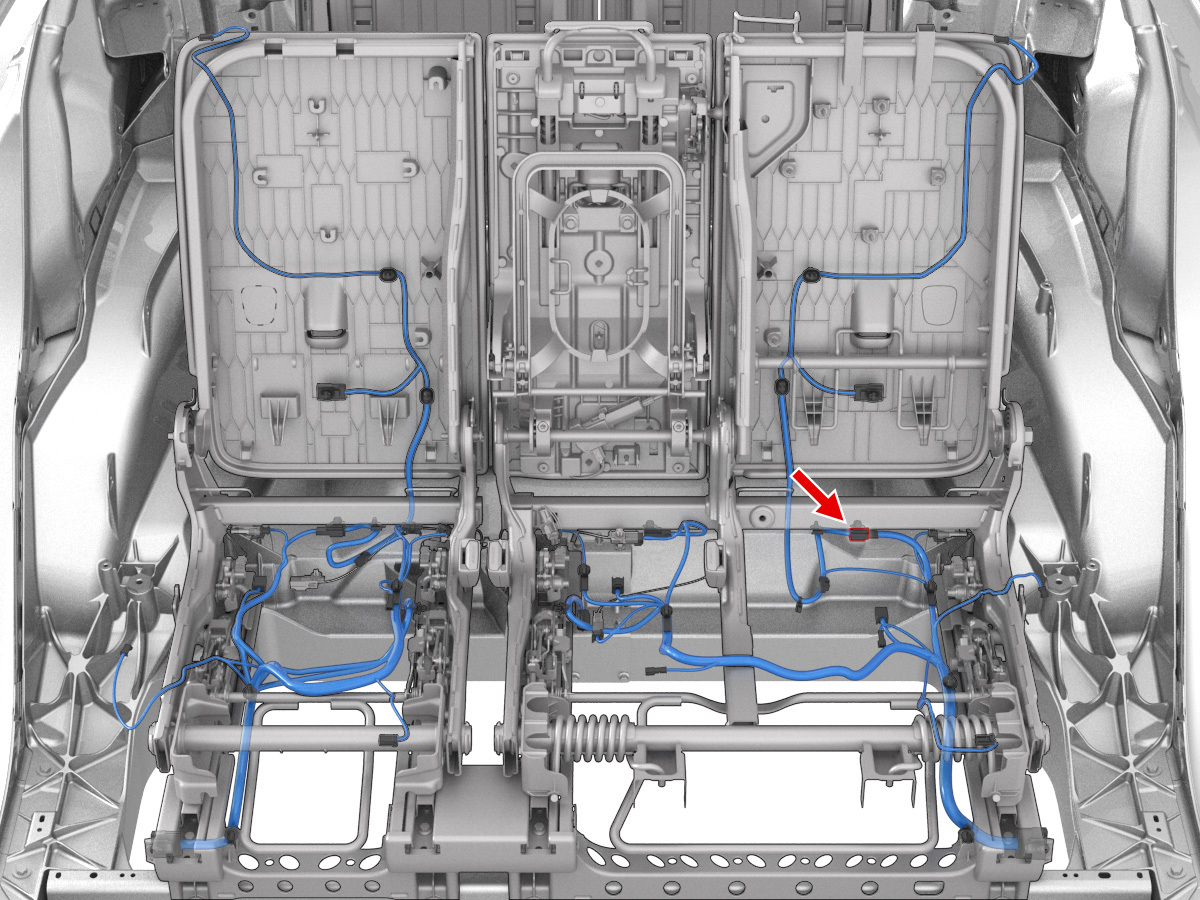

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8240-02151.5x0.64FVT0.35X6652
2SUMITOMO8240-02151.5x0.64FGY0.35X6651
3SUMITOMO8240-02151.5x0.64FRD0.50X6762
4SUMITOMO8240-02151.5x0.64FBK0.50X6761
