X942M

Tesla Part Number

1042613-03-A

Connector

SUMITOMO 6098-5600

Color

GY

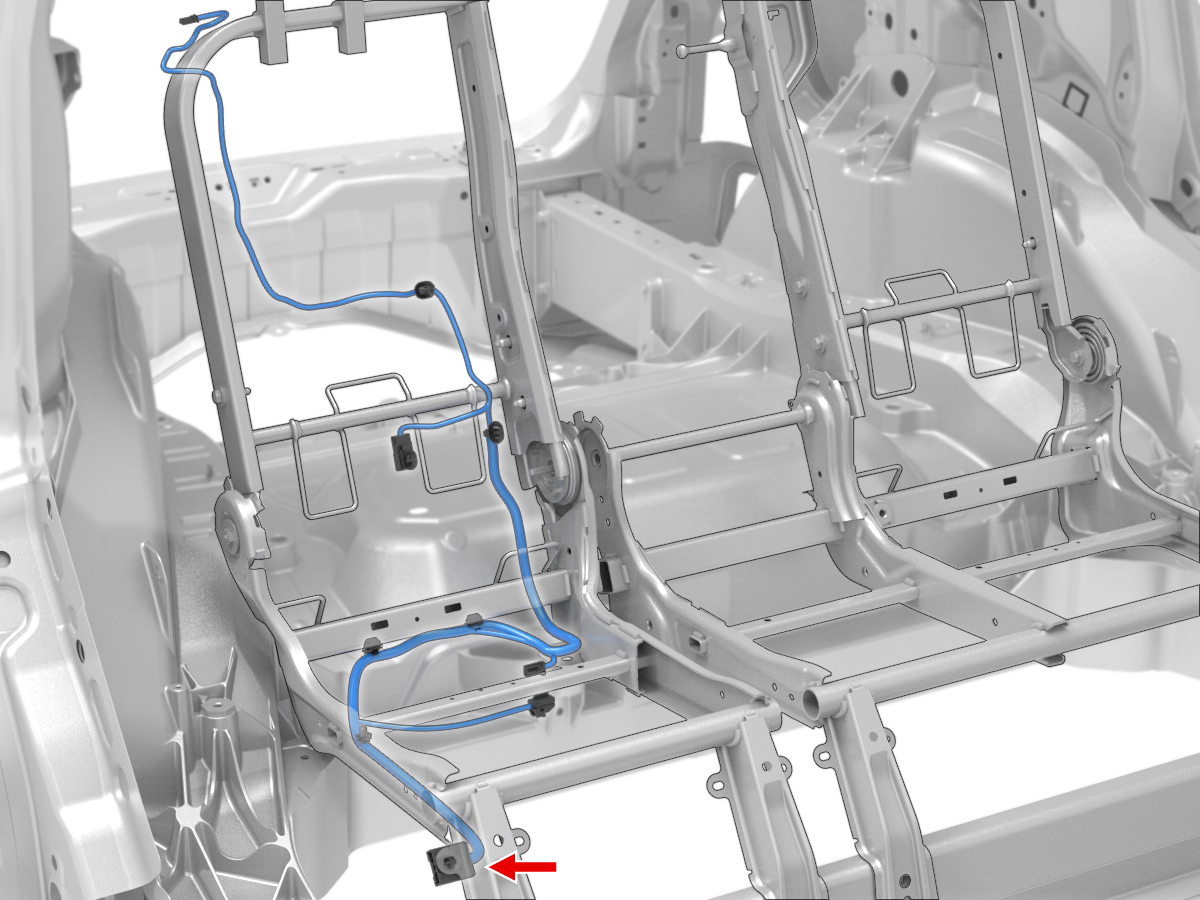

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	BN	0.50			X941M	3
2	SUMITOMO	8230-4925	1.5x0.6M	BU	0.35			X671A	5
3	SUMITOMO	8100-3623	0.64x0.64M	BU	0.50			X667A	2
4	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X667A	1
5	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X664A	1
6	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X941M	1
7	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X645	2
8	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X634	2
9	SUMITOMO	8230-4925	1.5x0.6M	BU	0.50			X658	1
10	SUMITOMO	8230-4925	1.5x0.6M	WH	0.50			X658	2
11	SUMITOMO	8230-4925	1.5x0.6M	GN	0.35			X674A	1
12	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X671A	1
13	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X671A	8
14	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X648A	1
15	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X635	2
16	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50
17	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50			X671A	4
18	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X941M	4
