X942M_1

Tesla Part Number

1042613-03-A

Connector

SUMITOMO 6098-5600

Color

GY

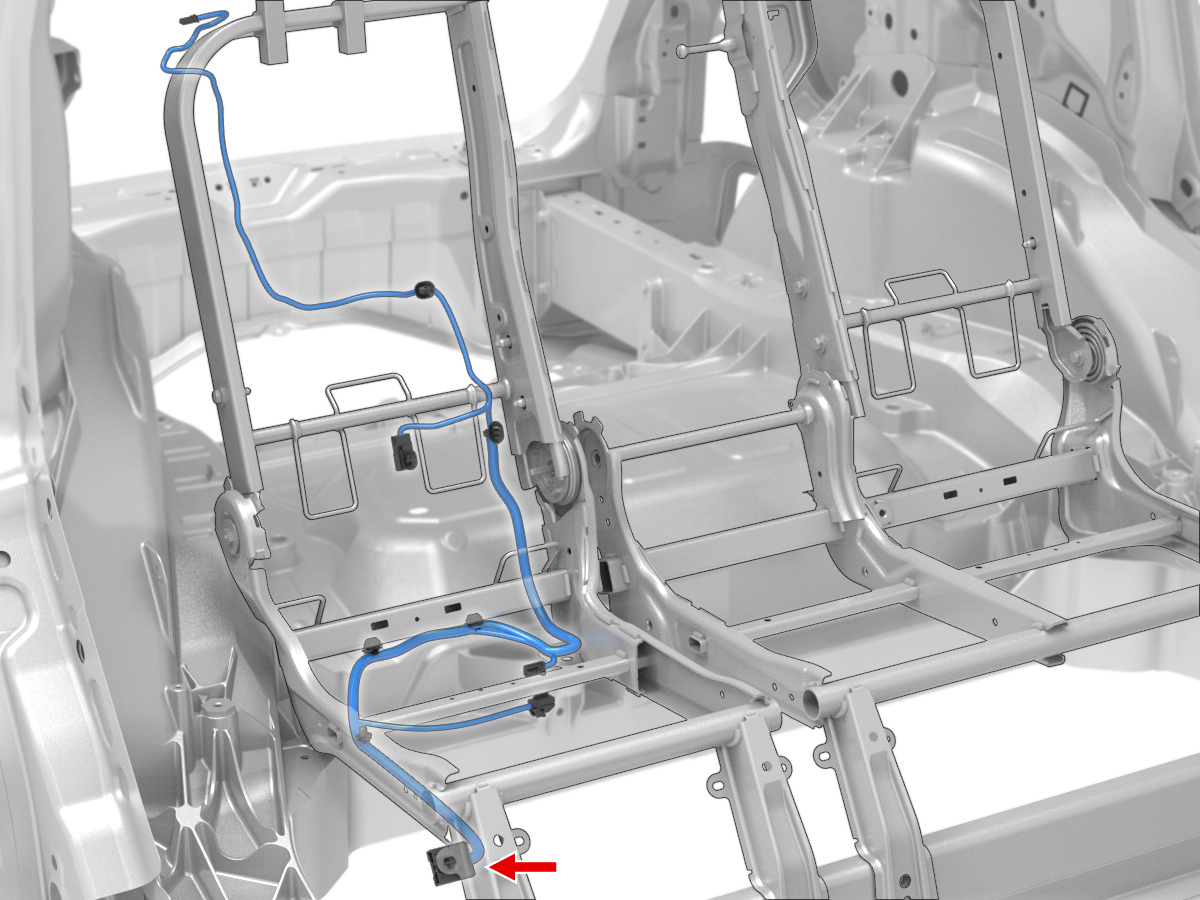

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	BN	0.50			X677	2
2	unused
3	SUMITOMO	8100-3623	0.64x0.64M	BU	0.50
4	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50
5	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X664	1
6	unused
7	unused
8	unused
9	unused
10	unused
11	SUMITOMO	8230-4925	1.5x0.6M	GN	0.35			X674	1
12	unused
13	unused
14	unused
15	unused
16	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35
17	unused
18	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X677	1
