X943M

Tesla Part Number

1048098-00-A

Connector

YAZAKI 7286-1918

Color

WH

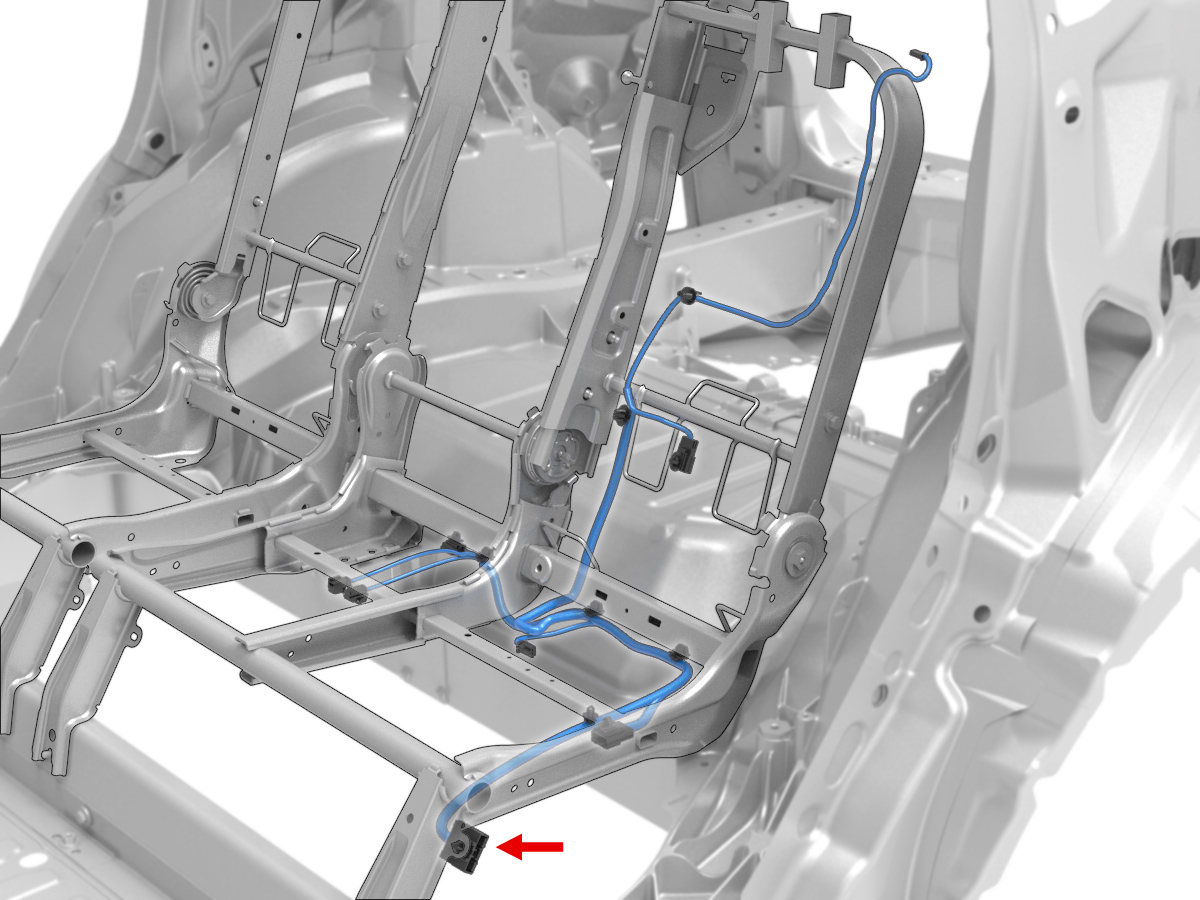

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X940M	3
2	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X669A	2
3	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X669A	1
4	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X666A	1
5	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X647A	1
6	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X659	1
7	SUMITOMO	8100-3623	0.64x0.64M	YE	0.50			X659	2
8	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50			X944M	1
9	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X944M	2
10	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X944M	3
11	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X672A	1
12	unused
13	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X672A	5
14	unused
15	SUMITOMO	8230-4925	1.5x0.6M	GN	0.50			X670A	4
16	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X670A	5
17	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X673A	1
18	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X675A	1
19	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X646A	1
20	unused
21	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50
22	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X632	2
23	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X633	2
24	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X940M	1
25	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X644	2
26	SUMITOMO	8230-4923	1.5x0.6M	BK	1.50
