X943M_1

Tesla Part Number

1048098-00-A

Connector

YAZAKI 7286-1918

Color

WH

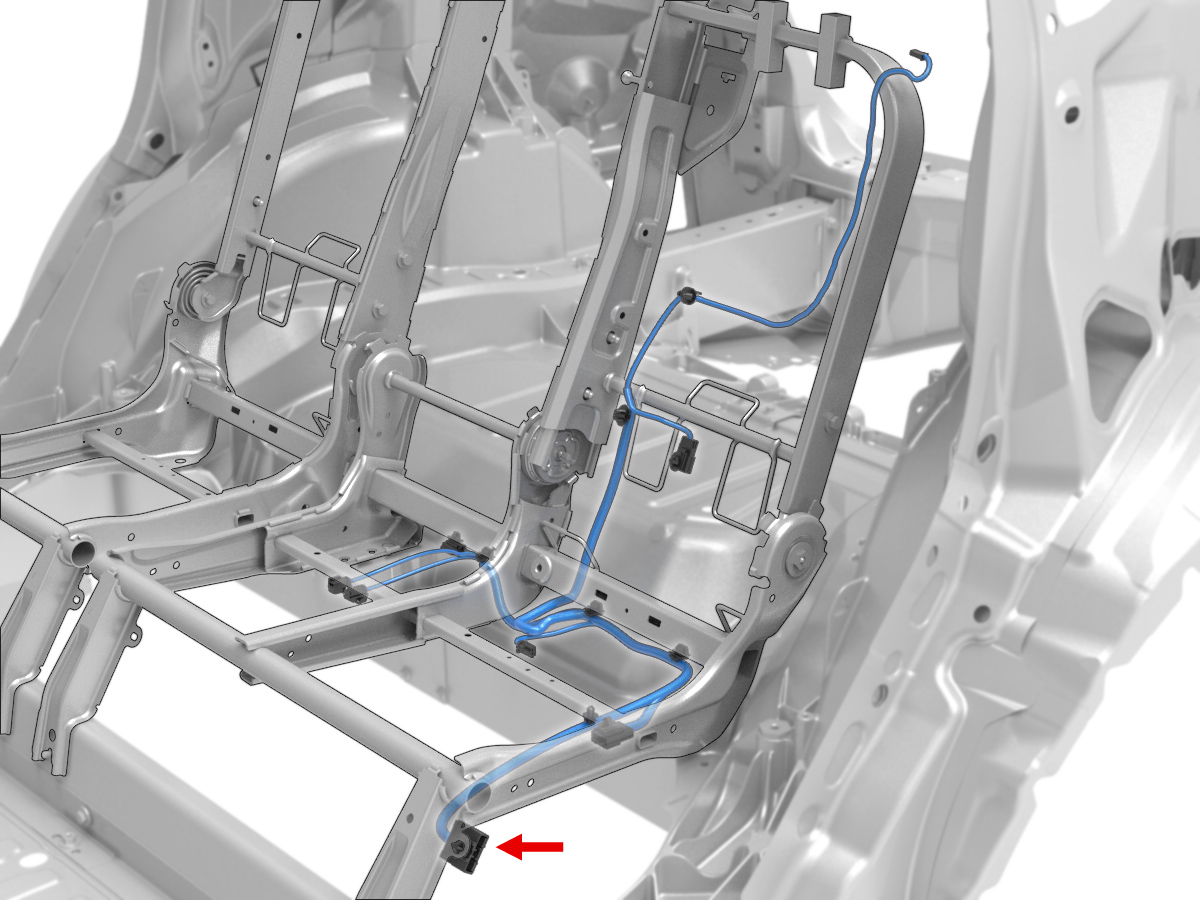

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X676	2
2	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X669	2
3	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X669	1
4	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X666	1
5	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X945M	10
6	unused
7	unused
8	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50			X944M_1	1
9	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X944M_1	2
10	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X944M_1	3
11	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50			X945M	2
12	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X945M	9
13	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X945M	8
14	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50			X945M	3
15	SUMITOMO	8230-4925	1.5x0.6M	GN	0.50			X945M	1
16	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X945M	7
17	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X673	1
18	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X675	1
19	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X945M	4
20	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X945M	5
21	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50
22	unused
23	unused
24	unused
25	unused
26	SUMITOMO	8230-4923	1.5x0.6M	BK	2.00
