X944F

Tesla Part Number
1042589-00-A
Connector
SUMITOMO 6098-5677
Color
WH

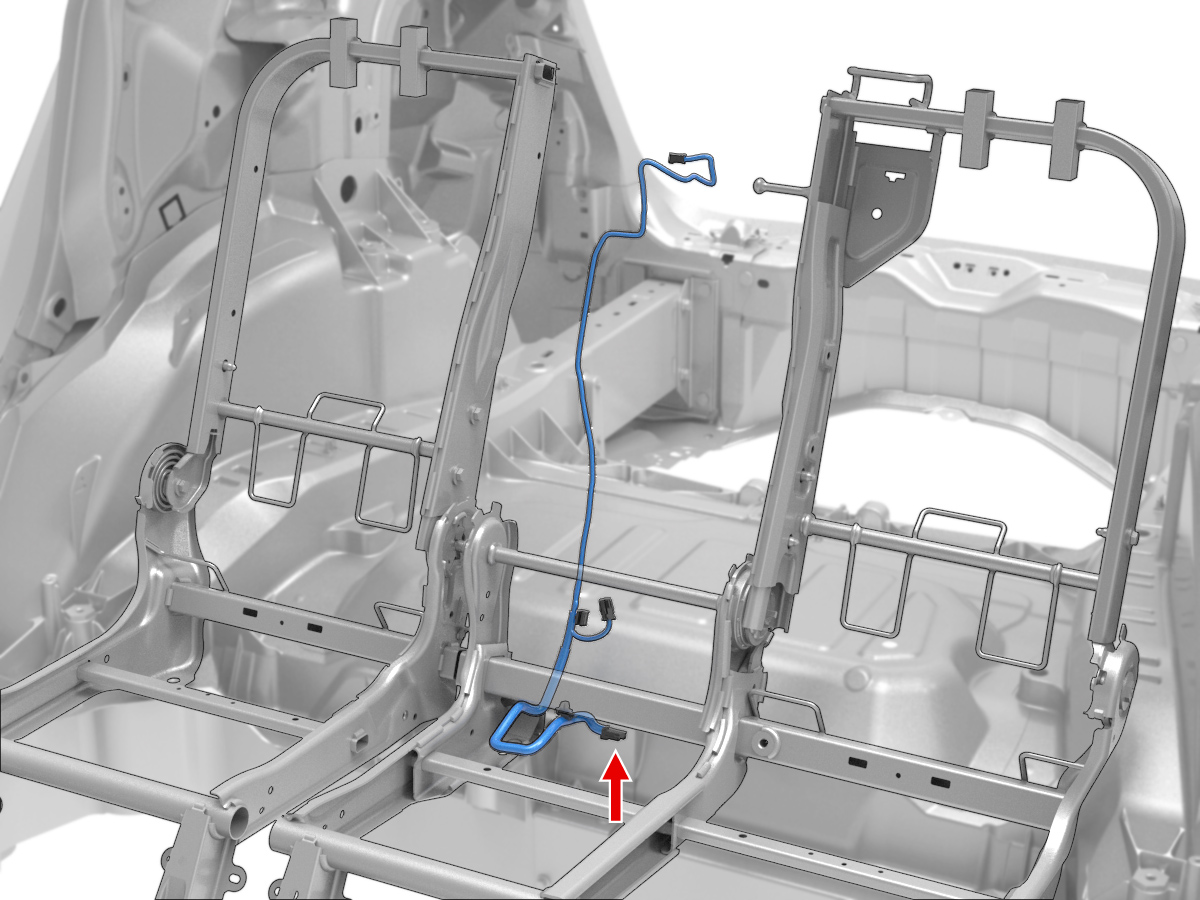

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8240-02151.5x0.64FVT0.50X6682
2SUMITOMO8240-02151.5x0.64FRD0.50X6681
3SUMITOMO8240-02151.5x0.64FBU0.35X6621
4SUMITOMO8240-02151.5x0.64FBK0.35X6622
