X947M

Tesla Part Number

1042577-00-A

Connector

SUMITOMO 6098-3869

Color

WH

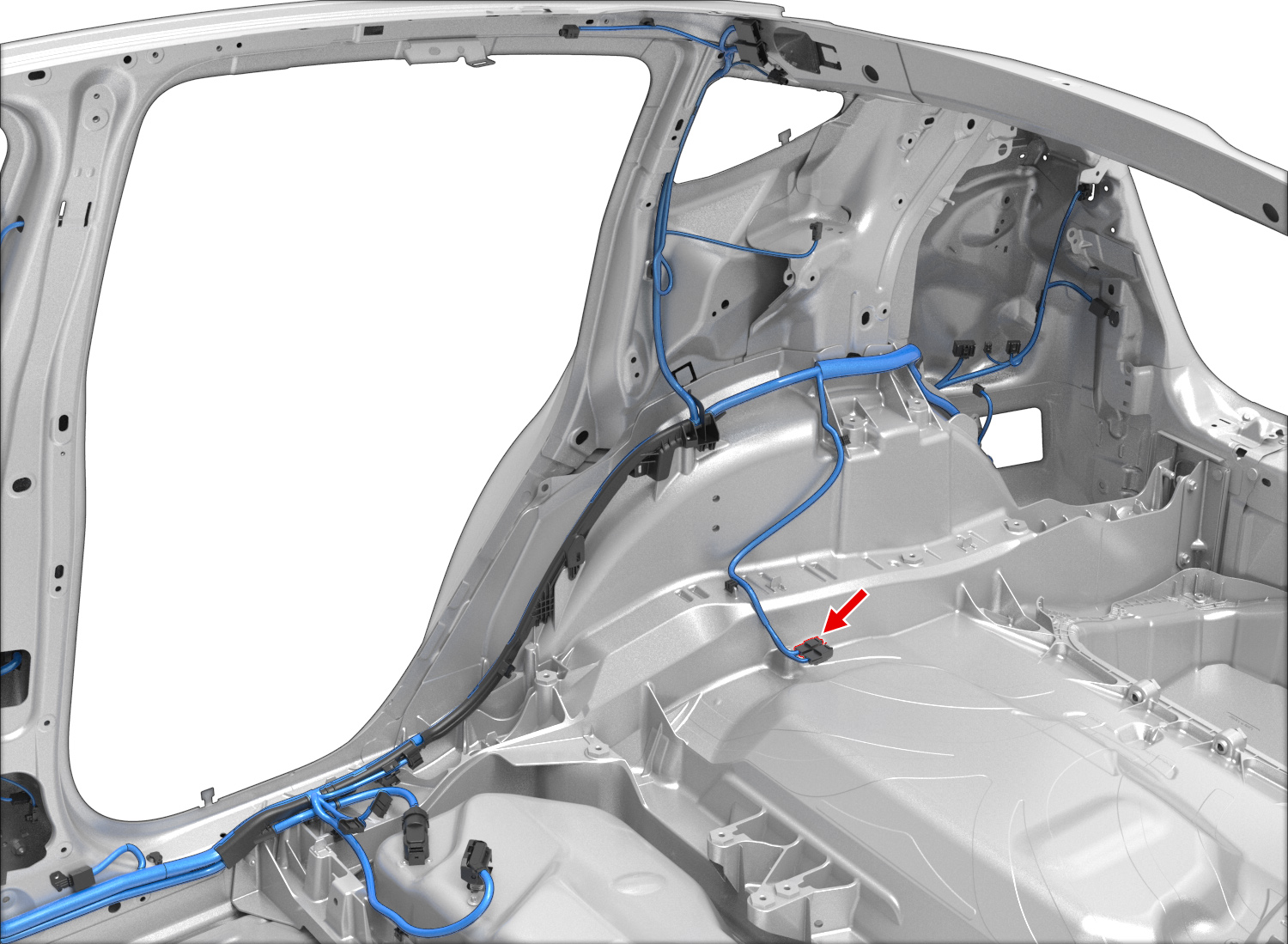

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X059	17
2	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X059	16
3	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X059	1
4	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50			X059	2
5	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X059	4
6	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50
7	unused
8	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X059	6
9	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X059	7
10	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X059	5
